Pinout details for all variants of SR5E1E7 MCU

[sanket471]

I am working on Acoustic vehicle alerting system (AVAS).

May I know where Can I get Pinout details for all variants of SR5E1E7 MCU ?

[Andrew Neil]

On the Product Page ?

https://www.st.com/en/automotive-microcontrollers/sr5e1e7.html

[sanket471]

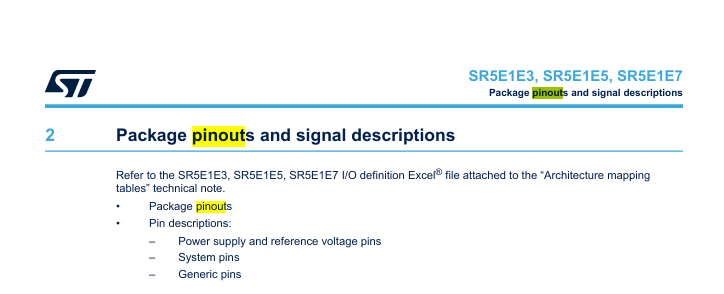

Datasheet says refer Excel Sheet file attached to Architecture mapping table technical note.

Which says as below: Get from excel workbook attached to the SR5E1x IO_Defination document

[Peter BENSCH · Accepted solution]

@sanket471

Exactly there the pinout can also be found. But let's go through it step by step:

1. Open the product website, go to the Documentation tab
2. Search for the term "definition" on this website
3. Find TN1404 and open it with a PDF viewer that can handle attachments
4. Open the Attachments tab of the PDF viewer and find "SR5E1x-IO_Definition_V4.xlsx"

I hope I was able to help a little with finding the information?

Regards
/Peter

[sanket471]

I was using Edge to view pdf. Now I used Adobe pdf viewer and got the excel. Thank you.

[Peter BENSCH]

Unfortunately, this is one of the pitfalls you can fall into if you don't use a PDF viewer that supports attachments, but rather just the one that comes with the browser. However, you can easily switch the PDF engine to an external viewer in Edge as well.
