Subject says it all, really: Go here, download the ZIP file for the 'Manufacturing files', and the 'Mechanical' folder is empty :(

Looking to get the offsets of the holes from the Arduino connector so I can bolt it down well.

This topic has been closed for replies.
Best answer by Olivier GALLIEN

Hi @Spaced Cowboy​

Please find attached the STEP file supposed to be in the ZIP.

Please, confirm this is what you were expecting.

Olivier

5 replies

Olivier GALLIEN
ST Technical Moderator
September 25, 2019

Hi @Spaced Cowboy​

I confirm the problem.

I escalate it internally and come back to you ASAP

Sorry for inconvenience

Olivier

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.
Olivier GALLIEN
Olivier GALLIENBest answer
ST Technical Moderator
September 25, 2019

Hi @Spaced Cowboy​

Please find attached the STEP file supposed to be in the ZIP.

Please, confirm this is what you were expecting.

Olivier

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.
Spaced Cowboy
Associate III
September 25, 2019

Hi Olivier, thanks for the quick reply :)

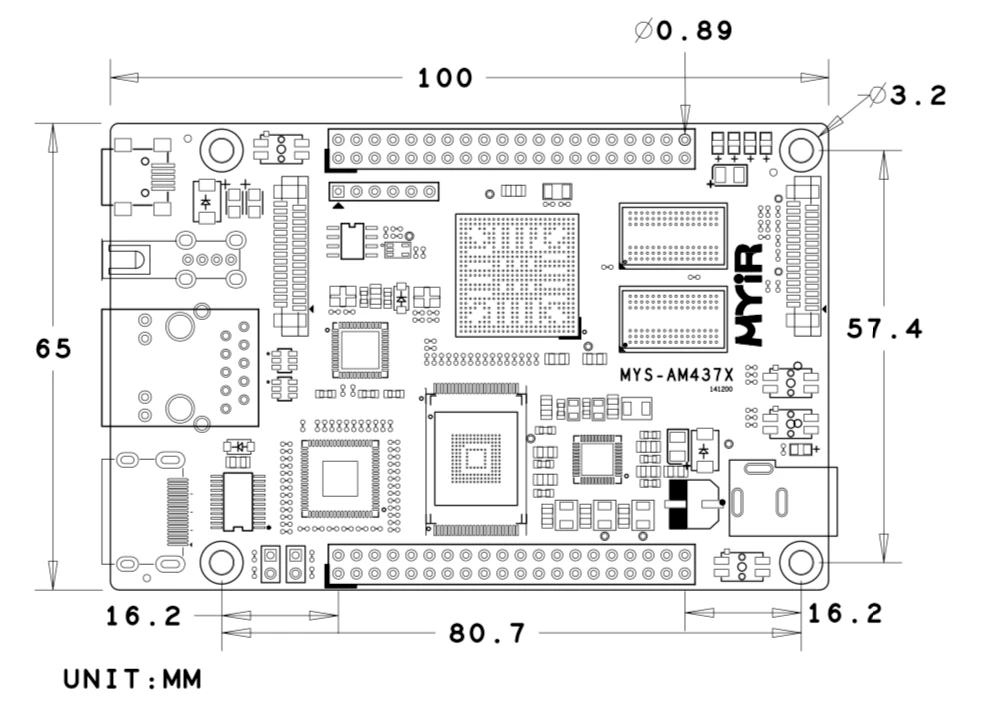

The STEP file looks a bit like overkill, to be honest - but I'll try and find a viewer for the format on my Mac, and see if I can get the info I need. What I really wanted (I mention this in case it's there and I missed it) was something like:


Cheers :)

Olivier GALLIEN
ST Technical Moderator
September 26, 2019

Hi @Spaced Cowboy​

No, we do not provide similar details measure file.

Don't you get information using Altium PCB file in ODB+ folder ?

Hope it help,

Olivier

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.
Spaced Cowboy
Associate III
September 26, 2019

Well, if I had Altium....

Even the free viewer for their file-format is PC-only, which doesn't help me on a Mac :(

However, you gave me the idea to look at the combination of MB1272-C01_Assembly.PDF, MB1272-C01_PickandPlace.txt and MB1272C-RoundHoles-Plated.TXT. For anyone else that cares, the holes and connector centres (in mm) are:

CN2: cx=51.5000 cy=67.5000 part=SAMTEC_TSW-120-07-G-D

CN13: cx=59.4340 cy=61.4500 part=SAMTEC_SSW-110-22-X-S-VS
CN14: cx=35.0500 cy=61.4500 part=SAMTEC_SSW-108-22-X-S-VS
CN16: cx=52.8300 cy=13.1900 part=SAMTEC_SSW-108-22-X-S-VS
CN17: cx=32.5100 cy=13.1900 part=SAMTEC_SSW-106-22-X-S-VS

CN4: cx=22.5500 cy=41.5000 part=TE-CONNECTIVITY_2-1734248-0

H1: cx=22.5 cy=67.5
H2: cx=80.5 cy=67.5
H3: cx=22.5 cy=18.5
H4: cx=80.5 cy=18.5

Bear in mind that CN13..17 are on the underside of the board, so their origin is the bottom-right corner as you look down on the board from above, not the bottom-left. (These are pick-and-place co-ords, and the board is flipped when placing on the bottom)
