STM32WL33CC DEEPSTOP power consumption

  • August 31, 2026
  • 9 replies
  • 77 views

Support request: STM32WL33CC — DEEPSTOP average current rises well above datasheet spec, even within a single uninterrupted dwell

Part / package

STM32WL33CC (custom board, not a Nucleo/eval board).

Summary

On our custom board, DEEPSTOP average current starts near the expected low-µA range on entry but climbs over tens of seconds to a plateau of roughly 360–390 µA — two to three orders of magnitude above the datasheet's Table 13 "Current consumption in DEEPSTOP mode" figures (≈1.2–2.1 µA ICORE across all listed LSI/LSE/RTC/IWDG/LPUART configurations).



This is reproducible, happens within a single uninterrupted DEEPSTOP dwell (i.e. it is not an artifact of repeated entry/exit cycling), and we have ruled out every peripheral, sensor, and firmware-level cause we can identify. We'd like ST's input on whether this is a known/expected behavior of the DEEPSTOP power architecture (e.g. an internal analog settling time not captured in the static spec table) or points to a board- or configuration-level issue we've missed.

Observed behavior (measured with a Joulescope JS110, powered from a bench lab supply — no battery involved)

  • Entering SHUTDOWN mode gives a clean, stable 33–34 µA baseline (this is understood to be external, non-STM32WL33 board current — a magnetometer and accelerometer remain active in this state).
  • Entering DEEPSTOP starts at a clean 20–30 µA baseline, then climbs steadily over roughly 30–60 seconds to a ~360–390 µA plateau.
  • The climb is visible both across many short (~1 s) DEEPSTOP entry/exit cycles and within a single uninterrupted DEEPSTOP dwell of 60 s with no intervening wake — ruling out any per-cycle re-entry/reconfiguration effect.
  • The elevated current is not simply "stuck" — it resets cleanly back to the ~20–30 µA baseline only after a genuine SHUTDOWN-mode wake (full reset-equivalent boot), and climbs again identically regardless of which DEEPSTOP-cycling path triggered it.
  • Active (RUN-mode) pulse width between DEEPSTOP dwells was confirmed constant (~16 ms) via Joulescope zoom, ruling out growing per-cycle CPU work as a contributor.

What has been ruled out

We isolated each of the following individually via compile-time test builds, re-flashed and re-measured after each change, then reverted before testing the next:



  • I2C bus and both external sensors (IIS2MDC magnetometer, IIS2DULPX accelerometer): disabled all I2C traffic on every wake (including the I2C peripheral's own re-init), forced the magnetometer into idle mode as the last command it ever receives (rather than leaving it in its default Continuous-mode/10 Hz configuration), and removed their DRDY/INT lines from every DEEPSTOP wake-source arming register. Current creep unchanged.
  • MR_SUBG (sub-GHz radio) entirely: forced RCC_APB2ENR_MRSUBGEN off before every DEEPSTOP entry (never re-enabled for the duration of the test) and bypassed our own LSI-frequency calibration routine (which otherwise depends on MR_SUBG) by assuming a fixed, previously-measured LSI value instead. Current creep unchanged.
  • RTC wakeup-timer per-cycle reprogramming: our firmware normally disables/reprograms/re-enables the RTC wakeup timer (WUTE/WUTR/WUCKSEL) on every DEEPSTOP entry, even when the requested period is unchanged. We patched this to skip the reprogram and let the wakeup timer free-run/auto-reload across cycles when the period is constant. Current creep unchanged.
  • PWR_CR5.SMPSLPOPEN polarity: tested both settings (VFBSD tied to VDDSD vs. floating during the DEEPSTOP SMPS "STOP" sub-state). No measurable difference either way.
  • Cycling frequency itself: to separate "how often DEEPSTOP is entered" from "how long DEEPSTOP has been running," we forced a single uninterrupted 60 s DEEPSTOP dwell (watchdog temporarily disabled for this test only) instead of our normal ~1 s cadence. The current still climbed to the same ~360 µA plateau within that one dwell — this was the most decisive result, and rules out repeated Run↔Stop toggling of the SMPS/VDD12i domain as the mechanism.
  • GPIO retention/ODR glitch: found and fixed an unrelated real bug (output pins glitching low for one cycle after DEEPSTOP wake, before GPIORET release) — confirmed no effect on the current creep either way.
  • CPU context save/restore assembly: reviewed the WFI/context-save routine; it only touches the Cortex-M0+ register stack via a RAM-addressed pointer, no peripheral register accesses.
  • Errata sheet (ES0612): reviewed; the only DEEPSTOP-current-adjacent erratum found (2.2.9, nonbonded GPIOs) applies to the VFQFPN32 package, not our part's package, so does not appear applicable.
  • Battery passivation: not applicable — board is powered from a bench lab supply (GPR30160) for all measurements, no battery in the current path.



We have not been able to test SMPS bypass directly: our board's VFBSD pin is wired to the SMPS's own L/C network (per our schematic) for SMPS-active operation, not to VDD or an external supply as required by the datasheet's "No SMPS" configuration, so PWR_CR5.NOSMPS is not a valid configuration on this hardware without a rework. We have not attempted SMPS Bypass-On-The-Fly (NOSMPS_BOF) yet.

Configuration during the decisive (single-dwell) test

  • No I2C activity, both external sensors idle, MR_SUBG powered down entirely (see above) — the only wake source armed was the RTC wakeup timer.
  • PWR_CR5.SMPSLPOPEN = 0 (VFBSD tied to VDDSD during STOP).
  • LSI-sourced RTC wakeup timer, ~35070 Hz measured LSI frequency (this board's next hardware revision will use a properly wired LSE crystal instead of relying on LSI).
  • IWDG temporarily disabled for this one test only (re-enabled immediately afterward).

Questions for ST

  1. Is a multi-second-to-a-minute current ramp from the low-µA baseline up to ~360–390 µA within a single DEEPSTOP dwell expected/known behavior of any internal analog block (SMPS "STOP" sub-state bias, Main LDO, VCAP settling, GPIORET retention circuitry, etc.), and if so is it documented anywhere beyond the static Table 13 figures?
  2. Is there a known erratum covering this that isn't captured in ES0612 as we have it, or a required configuration/sequencing step we may have missed for sustained DEEPSTOP operation?
  3. Given our board's VFBSD wiring (tied to the SMPS L/C network, not to VDD), is SMPS Bypass-On-The-Fly (NOSMPS_BOF) expected to work correctly as a way to rule out the SMPS specifically, or does it have the same board-wiring prerequisite as plain NOSMPS?



Happy to provide register dumps, oscilloscope captures (VCAP/VFBSD nodes), or a minimal reproduction firmware image on request.

Best answer by DirkH

It turned out that there is a problem with DIE_ID 0x120 and 0x121. The problem is related to unused GPIO:s. The solution is to activate PU/PD for ALL PINS in the GPIOx-PUPDR. Make sure it does not work against your application hardware. GPIORET=1 maintains these settings in DEEPSTOP. For SHUTDOWN the corresponding solution is to use lowPowerIOSetup or set the PWR->PUCRx/PWR->PDCRx in your own firmware.

https://github.com/STMicroelectronics/STM32CubeWL3/blob/main/Projects/NUCLEO-WL33CC/Examples/PWR/PWR_DEEPSTOP/Src/stm32wl3x_hal_msp.c

Make sure it does not conflict with external pull-up/down or external IC driving the pin.

We are now down to 11.3 µA in SHUTDOWN and 13 µA in DEEPSTOP. This is due to external circuitry on the board we believe.

9 replies

DirkHAuthor
Associate III
September 1, 2026

Update — also tested GPIO pull configuration

Since this pattern resembles reports on other ST wireless parts (e.g. BlueNRG-LP threads where a slow DEEPSTOP current climb turned out to be unused GPIOs left floating due to a "normal-mode" GPIO init overriding the sleep-mode pull config), we checked this explicitly:

  • Unused GPIOs configured analog, no pull-up/down (ST's standard recommendation) — no change to the climb.
  • Unused GPIOs re-tested as digital input/output with pull-down instead — no change to the climb.

Neither affects the curve shape or the ~360–390 µA plateau.

Andrew Neil
Super User
September 1, 2026

custom board, not a Nucleo/eval board

Then you’ll need to show the schematic - achieving low power is a whole-system task!

Can you reproduce this on a Nucleo/eval board ?



Contact

Note that this is a public forum - so you might want to reconsider publishing your email address to anyone & everyone on the whole interweb ...

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
DirkHAuthor
Associate III
September 1, 2026

It is not so easy to reproduce with a nucleo board maybe together with a IKS5A1 board. The 3 peripheral components on the board are IIS2DULPX, IIS2MDC and M24512E.

I noticed too late that I can not change my post and remove the contact details. Will try to post this as a private ticket so that I can share schematic and code.

Can not share them on a public forum.



Andrew Neil
Super User
September 1, 2026

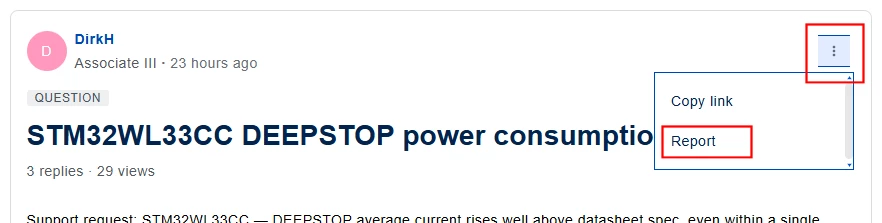

You can request a moderator to remove the email address - use the ‘Report’ option in the menu:



A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
ST Technical Moderator
September 1, 2026

Hello ​@DirkH ,

Contacting ST online support is the best way to get answer for such specific request by reaching the good persons, when you have a private data and code to share.

You can open a ticket through our online support portal: Support Home - STMicroelectronics

In order to give better visibility on the answered topics, please click on 'Best answer' on the reply which solved your issue or answered your question. Thanks
DirkHAuthor
Associate III
September 1, 2026

Hi Imen.D

I get an error message when trying to log in a private ticket.



ST Technical Moderator
September 2, 2026

Hi ​@DirkH

I've escalated your access issue to the appropriate team to fix it.

I'll make sure to post any updates here as soon as I have update.



In order to give better visibility on the answered topics, please click on 'Best answer' on the reply which solved your issue or answered your question. Thanks
DirkHAuthorBest answer
Associate III
September 8, 2026

It turned out that there is a problem with DIE_ID 0x120 and 0x121. The problem is related to unused GPIO:s. The solution is to activate PU/PD for ALL PINS in the GPIOx-PUPDR. Make sure it does not work against your application hardware. GPIORET=1 maintains these settings in DEEPSTOP. For SHUTDOWN the corresponding solution is to use lowPowerIOSetup or set the PWR->PUCRx/PWR->PDCRx in your own firmware.

https://github.com/STMicroelectronics/STM32CubeWL3/blob/main/Projects/NUCLEO-WL33CC/Examples/PWR/PWR_DEEPSTOP/Src/stm32wl3x_hal_msp.c

Make sure it does not conflict with external pull-up/down or external IC driving the pin.

We are now down to 11.3 µA in SHUTDOWN and 13 µA in DEEPSTOP. This is due to external circuitry on the board we believe.
