December 23, 2019
Question

STM32F746G-DISCO : TouchGFX Run Target Fail

Hi

I am using TouchGFX  4.12.3 with STM32F746G-DISCO Board.

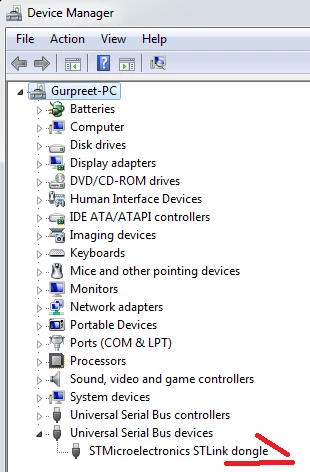

I have already installed STLink and STCubeProgrammer.

I am able to GUI run on simulator but not on target .

Please check below logs.

--

Thanks

Gurpreet Singh

This topic has been closed for replies.

3 replies

Karan 123
Karan 123Author
Senior
December 23, 2019
Run Target

 Generate

 Done

 Generate Assets

 make -f simulator/gcc/Makefile assets -j10

 Converting images

 Done

 Post Generate

 touchgfx update_project --project-file=../EWARM/MyApplication_3.ewp --gui-group-name=Application/User/TouchGFX/gui --generated-group-name=Application/User/TouchGFX/generated && touchgfx update_project --project-file=simulator/msvs/Application.vcxproj

 Done

 Compile

 make -f ../gcc/Makefile -j8

 Converting images

 Compiling TouchGFX/gui/src/screen1_screen/Screen1Presenter.cpp

 Compiling TouchGFX/generated/fonts/src/Font_verdana_20_4bpp_0.cpp

 Compiling TouchGFX/gui/src/common/FrontendApplication.cpp

 Compiling TouchGFX/gui/src/screen1_screen/Screen1View.cpp

 Compiling TouchGFX/generated/gui_generated/src/screen1_screen/Screen1ViewBase.cpp

 Compiling TouchGFX/generated/fonts/src/Font_verdana_40_4bpp_0.cpp

 Compiling TouchGFX/gui/src/model/Model.cpp

 Compiling TouchGFX/generated/gui_generated/src/common/FrontendApplicationBase.cpp

 Compiling TouchGFX/generated/fonts/src/GeneratedFont.cpp

 Compiling TouchGFX/generated/fonts/src/Kerning_verdana_40_4bpp.cpp

 Compiling TouchGFX/generated/fonts/src/Table_verdana_10_4bpp.cpp

 Compiling TouchGFX/generated/fonts/src/Kerning_verdana_20_4bpp.cpp

 Compiling TouchGFX/generated/fonts/src/FontCache.cpp

 Compiling TouchGFX/generated/fonts/src/Kerning_verdana_10_4bpp.cpp

 Compiling TouchGFX/generated/fonts/src/Font_verdana_10_4bpp_0.cpp

 Compiling TouchGFX/generated/fonts/src/CachedFont.cpp

 Compiling TouchGFX/generated/fonts/src/Table_verdana_40_4bpp.cpp

 Compiling TouchGFX/generated/fonts/src/Table_verdana_20_4bpp.cpp

 Compiling TouchGFX/generated/fonts/src/ApplicationFontProvider.cpp

 Compiling TouchGFX/generated/images/src/__designer/Blue_Buttons_Round_Edge_small.cpp

 Compiling TouchGFX/generated/images/src/__designer/Blue_Buttons_Round_Edge_small_pressed.cpp

 Compiling TouchGFX/generated/images/src/BitmapDatabase.cpp

 Compiling TouchGFX/generated/texts/src/TypedTextDatabase.cpp

 Compiling TouchGFX/generated/texts/src/Texts.cpp

 Compiling Middlewares/ST/TouchGFX/touchgfx/os/OSWrappers.cpp

 Compiling TouchGFX/target/STM32F7Instrumentation.cpp

 Compiling Core/Src/main.cpp

 Compiling TouchGFX/target/STM32F7TouchController.cpp

 Compiling TouchGFX/target/STM32F7DMA.cpp

 Compiling TouchGFX/target/STM32F7HAL.cpp

 Compiling TouchGFX/target/GPIO.cpp

 Compiling TouchGFX/target/HW_Init.cpp

 Compiling TouchGFX/target/BoardConfiguration.cpp

 In file included from Core/Src/main.cpp:53:0:

 Core/Src/main.cpp: In function 'int main()':

 Middlewares/Third_Party/FreeRTOS/Source/CMSIS_RTOS/cmsis_os.h:470:54: warning: ISO C++ forbids converting a string constant to 'char*' [-Wwrite-strings]

 { #name, (thread), (priority), (instances), (stacksz)}

 ^

 Core/Src/main.cpp:176:5: note: in expansion of macro 'osThreadDef'

 osThreadDef(defaultTask, StartDefaultTask, osPriorityNormal, 0, 4096);

 ^~~~~~~~~~~

 Compiling Middlewares/Third_Party/FreeRTOS/Source/croutine.c

 Compiling Middlewares/Third_Party/FreeRTOS/Source/list.c

 Compiling Middlewares/Third_Party/FreeRTOS/Source/tasks.c

 Compiling Middlewares/Third_Party/FreeRTOS/Source/queue.c

 Compiling Middlewares/Third_Party/FreeRTOS/Source/timers.c

 Compiling Middlewares/Third_Party/FreeRTOS/Source/portable/MemMang/heap_2.c

 Compiling Middlewares/Third_Party/FreeRTOS/Source/portable/GCC/ARM_CM7/r0p1/port.c

 Compiling Drivers/BSP/STM32746G-Discovery/stm32746g_discovery.c

 Compiling Drivers/BSP/Components/ft5336/ft5336.c

 Compiling Drivers/BSP/STM32746G-Discovery/stm32746g_discovery_ts.c

 Compiling Drivers/BSP/STM32746G-Discovery/stm32746g_discovery_qspi.c

 Compiling Drivers/BSP/STM32746G-Discovery/stm32746g_discovery_sdram.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_cortex.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_dma.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_dma2d.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_gpio.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_dma_ex.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_i2c.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_i2c_ex.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_ltdc.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_nor.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_rcc.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_pwr_ex.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_sdram.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_rcc_ex.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_sd.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_tim.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_tim_ex.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_qspi.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_pwr.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_crc_ex.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_crc.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_rtc.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_rtc_ex.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_hal_uart.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_ll_fmc.c

 Compiling Drivers/STM32F7xx_HAL_Driver/Src/stm32f7xx_ll_sdmmc.c

 Compiling Core/Src/system_stm32f7xx.c

 Compiling Core/Src/freertos.c

 Compiling Core/Src/stm32f7xx_hal_msp.c

 Compiling Core/Src/stm32f7xx_hal_timebase_tim.c

 Compiling Core/Src/stm32f7xx_it.c

 Compiling ASM Drivers/CMSIS/Device/ST/STM32F7xx/Source/Templates/gcc/startup_stm32f746xx.s

 Compiling Middlewares/Third_Party/FreeRTOS/Source/CMSIS_RTOS/cmsis_os.c

 Linking TouchGFX/build/bin/target.elf

 Producing additional output formats...

 target.hex - Combined internal+external hex

 intflash.elf - Internal flash, elf debug

 intflash.hex - Internal flash, hex

 extflash.bin - External flash, binary

 Done

 Flash

 make -f ../gcc/Makefile -j8 flash

 Converting images

 Linking TouchGFX/build/bin/target.elf

 Producing additional output formats...

 target.hex - Combined internal+external hex

 intflash.elf - Internal flash, elf debug

 intflash.hex - Internal flash, hex

 extflash.bin - External flash, binary

 /usr/bin/sh: C:\Program Files (x86)\STMicroelectronics\STM32 ST-LINK Utility\ST-LINK Utility\ST-LINK_CLI.exe: No such file or directory

 gcc/Makefile:318: recipe for target '_extflash_' failed

 make[1]: *** [_extflash_] Error 127

 ../gcc/Makefile:50: recipe for target 'flash' failed

 make: *** [flash] Error 2

 Failed

HP_it
HP_it
Senior II
December 25, 2019

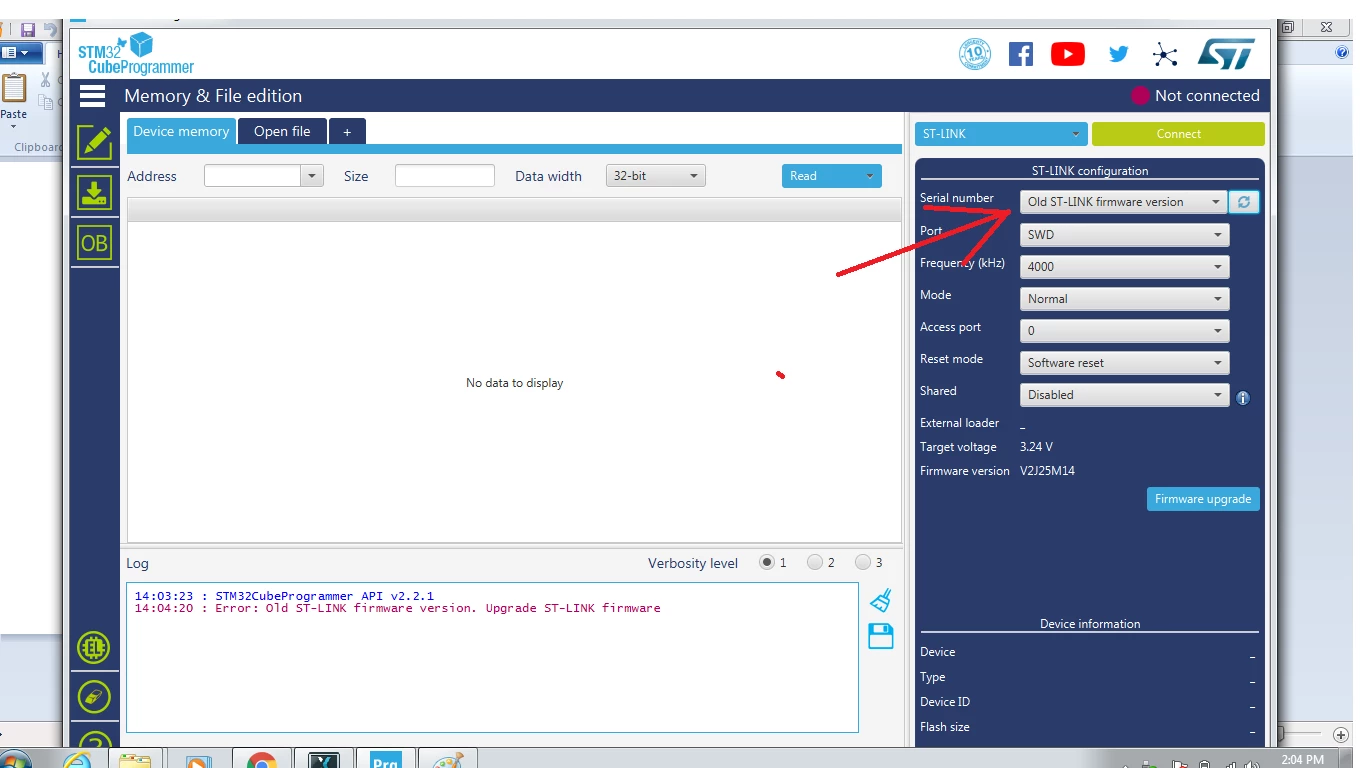

Wouldn't it be a good idea to update the firmware on your ST-link first? press the big blue 'firmware upgrade' button and see if that works.

the examples in TouchGFX designer should work out of the box. do they?

SVict.1
SVict.1
Visitor II
May 27, 2020

Did you find the solution? if yes please post it. thanks
