how to load and read fontflashsection and textflashsection in qspi?

[Zakba.1]

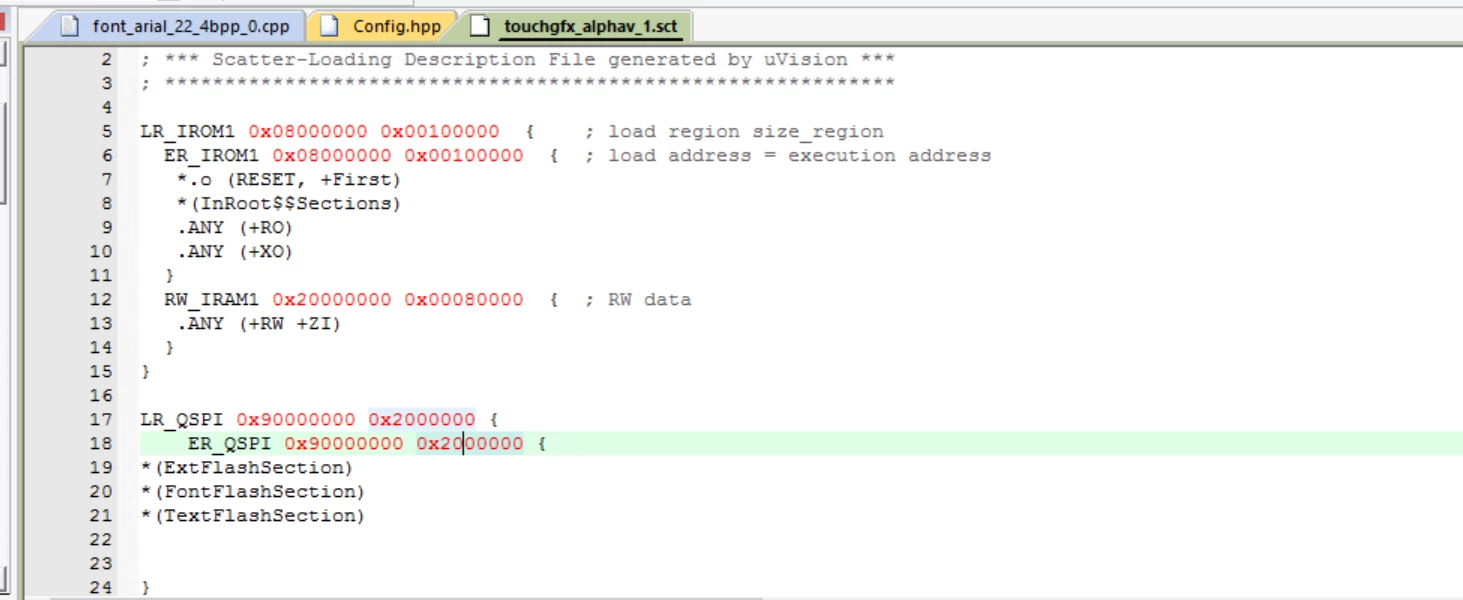

I could successfully load and read images (ExtFlashFection)in QSPI but when it comes to font and text it doesn't work... I use stm32f767+qspi+sdram+keil environment... and you see the .sct file and my project here.

can anybody help me?? internal flash runs out of space because of fonts and text and I don't know what to do... thank you in advance.

[Martin KJELDSEN]

Hi,

Just took a look at your map file and it seems there's lots of stuff in external flash

 ExtFlashSection 0x9000071c Section 3168 image_dasti.o(ExtFlashSection)
 ExtFlashSection 0x9000137c Section 33600 image_ent.o(ExtFlashSection)
 ExtFlashSection 0x900096bc Section 87120 image_felesh.o(ExtFlashSection)
 ExtFlashSection 0x9001eb0c Section 86680 image_felesh_left.o(ExtFlashSection)
 ExtFlashSection 0x90033da4 Section 768000 image_gireh_1.o(ExtFlashSection)
 ExtFlashSection 0x900ef5a4 Section 1534080 image_gireh_2.o(ExtFlashSection)
 ExtFlashSection 0x90265e24 Section 1656 image_green_led_inout.o(ExtFlashSection)
 ExtFlashSection 0x9026649c Section 3712 image_header_sqr_heater_blue.o(ExtFlashSection)
 ExtFlashSection 0x9026731c Section 3472 image_header_sqr_heater_red.o(ExtFlashSection)
 ExtFlashSection 0x902680ac Section 313600 image_inout2.o(ExtFlashSection)
 ExtFlashSection 0x902b49ac Section 1836 image_nim_auto.o(ExtFlashSection)
 ExtFlashSection 0x902b50d8 Section 1820 image_nimdasti.o(ExtFlashSection)
 ExtFlashSection 0x902b57f4 Section 1534080 image_paran_badi.o(ExtFlashSection)
 ExtFlashSection 0x9042c074 Section 1564 image_red_led_inout.o(ExtFlashSection)
 FontFlashSection 0x9042c690 Section 143785 font_arial_22_4bpp_0.o(FontFlashSection)
 FontFlashSection 0x9044f83c Section 1559 font_arial_22_4bpp_1.o(FontFlashSection)
 FontFlashSection 0x9044fe54 Section 349 font_arial_22_4bpp_20.o(FontFlashSection)
 FontFlashSection 0x9044ffb4 Section 74229 font_arial_22_4bpp_3.o(FontFlashSection)
 FontFlashSection 0x904621ac Section 28433 font_arial_22_4bpp_31.o(FontFlashSection)
 FontFlashSection 0x904690c0 Section 19744 font_arial_22_4bpp_4.o(FontFlashSection)
 FontFlashSection 0x9046dde0 Section 3395 font_arial_22_4bpp_5.o(FontFlashSection)
 FontFlashSection 0x9046eb24 Section 89 font_verdana_10_4bpp_0.o(FontFlashSection)
 FontFlashSection 0x9046eb80 Section 810 font_verdana_15_4bpp_0.o(FontFlashSection)
 FontFlashSection 0x9046eeac Section 1564 font_verdana_20_4bpp_0.o(FontFlashSection)
 FontFlashSection 0x9046f4c8 Section 4310 font_verdana_40_4bpp_0.o(FontFlashSection)
 FontFlashSection 0x904705a0 Section 42056 table_arial_22_4bpp.o(FontFlashSection)
 FontFlashSection 0x9047a9e8 Section 98 table_verdana_10_4bpp.o(FontFlashSection)
 FontFlashSection 0x9047aa4c Section 280 table_verdana_15_4bpp.o(FontFlashSection)
 FontFlashSection 0x9047ab64 Section 322 table_verdana_20_4bpp.o(FontFlashSection)
 FontFlashSection 0x9047aca8 Section 238 table_verdana_40_4bpp.o(FontFlashSection)
 TextFlashSection 0x9047ad98 Section 556 languagegb.o(TextFlashSection)
 TextFlashSection 0x9047afc4 Section 2130 texts.o(TextFlashSection)
 TextFlashSection 0x9047b818 Section 278 typedtextdatabase.o(TextFlashSection)
 typedText_database_GB 0x9047b818 Data 278 typedtextdatabase.o(TextFlashSection)

[Zakba.1]

Thank you sir for replying. but it still doesn't work. Before adding font and text to qspi everything is ok. but when I add them to the scatter file LCD shows just garbage...Is there any other thing I can do?

[Martin KJELDSEN]

This is the .sct file re: qspi for the f769-disco tbs

LR_EROM1 0x90000000 0x4000000 { ; load region size_region
 ER_EROM1 0x90000000 0x4000000 { ; load address = execution address
 *.o (ExtFlashSection)
 *.o (TextFlashSection)
 *.o (FontFlashSection)
 }
}

[Zakba.1]

Thank you so much...

[MM..1]

I dont use KEIL with TGFX, but primary try dont place TextFlashSection in QSPI.

Next debug your code, need switch mapped mode before tgfx init.

Using Non-Memory Mapped Flash for Font Data | TouchGFX Documentation

[Zakba.1]

Thank you sir. I deleted textflash section from scatter file and it worked...

[Zakba.1]

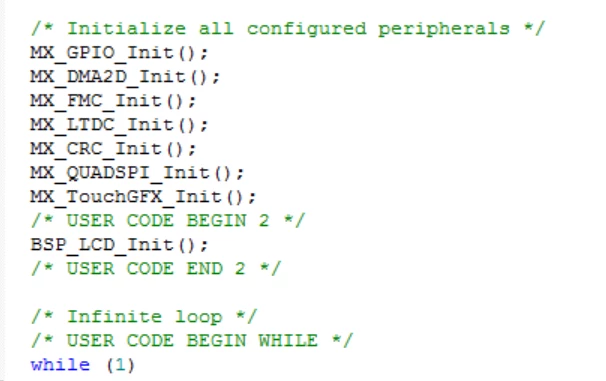

yes sir. I want to place TextFlahSection in ext flash too. As you can see in the photo QSpi is initialized before Touchfgx in the config tree...
