CubeMX 4.22.0 bug for DMA2D config

[Vitaliy Chernobay]

Posted on July 31, 2017 at 19:58

It is DMA2D config, generated CubeMX for Keil.

hdma2d.Instance = DMA2D;

hdma2d.Init.Mode = DMA2D_M2M;

hdma2d.Init.ColorMode = DMA2D_OUTPUT_ARGB8888;

hdma2d.Init.OutputOffset = 0;

hdma2d.LayerCfg[1].InputOffset = 0;

hdma2d.LayerCfg[1].InputColorMode = DMA2D_INPUT_ARGB8888;

hdma2d.LayerCfg[1].AlphaMode = DMA2D_REPLACE_ALPHA;

hdma2d.LayerCfg[1].InputAlpha = 0;

// hdma2d.LayerCfg[1].AlphaInverted = DMA2D_REGULAR_ALPHA;

// hdma2d.LayerCfg[1].RedBlueSwap = DMA2D_RB_REGULAR;

It is config for STM32F476IGTx. I must comment last lines for compillung.

It is line not for my processor

 (STM32F476IGTx)

 !!!

This feature is only available on devices :

STM32F756xx, STM32F767xx, STM32F769xx, STM32F777xx and STM32F779xx.

#dma2d #systemworkbench. #cubemx #cubemx #dma2d

[Imen.D]

Posted on August 01, 2017 at 12:48

Hello

Chernobay.Vitali.002

,

Thank you for reported this issue. Iraised it internally to CubeMx team for fix.

Best Regards

Imen

[Alex Fedoseev]

Posted on August 01, 2017 at 15:19

Vitaliy,

Thank you very much for identifying the error and providing a workaround.

I could not figure out why I can't use DMA2D in my project.

I also have the same

#

error when I import

https://community.st.com/tags#/?tags=cubemx

generated project into my IDE. I am using version 4.22 of CubeMX and

#

My Project is for STM32F7-DISCOVERY board

The IDE doesn't like these 2 lines of code:

 hdma2d.LayerCfg[1].AlphaInverted = DMA2D_REGULAR_ALPHA;
 hdma2d.LayerCfg[1].RedBlueSwap = DMA2D_RB_REGULAR;�?�?

The compiler can't find AlphaInverted, RedBlueSwap, DMA2_REGULAR_ALPHA, DMD2D_RB_REGULAR

Commenting out those 2 lines, as Vitaliy suggested, got rid of those errors.

Great job, Vitaliy!

[Vitaliy Chernobay]

Posted on August 01, 2017 at 15:44

It all is descabe in file stm32f7xx_hal_dma2d.h (from line 145)

#if defined (DMA2D_FGPFCCR_AI) && defined (DMA2D_BGPFCCR_AI)

uint32_t AlphaInverted; /*!< Select regular or inverted alpha value.

This parameter can be one value of @ref DMA2D_Alpha_Inverted.

This feature is only available on devices :

STM32F756xx, STM32F767xx, STM32F769xx, STM32F777xx and STM32F779xx.*/

#endif /* (DMA2D_FGPFCCR_AI) && (DMA2D_BGPFCCR_AI) */

#if defined (DMA2D_FGPFCCR_RBS) && defined (DMA2D_BGPFCCR_RBS)

uint32_t RedBlueSwap; /*!< Select regular mode (RGB or ARGB) or swap mode (BGR or ABGR).

This parameter can be one value of @ref DMA2D_RB_Swap

This feature is only available on devices :

STM32F756xx, STM32F767xx, STM32F769xx, STM32F777xx and STM32F779xx.*/

[Alex Fedoseev]

Posted on August 01, 2017 at 16:54

Thank you!

i guess, it's time to read the source code and the manual.

[stm32cube-t]

Posted on August 08, 2017 at 11:36

Hello Alex,

Can you please provide the ioc file for your F746 project?

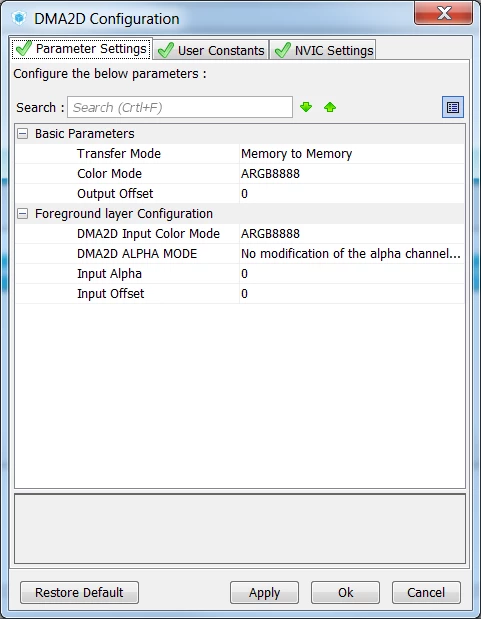

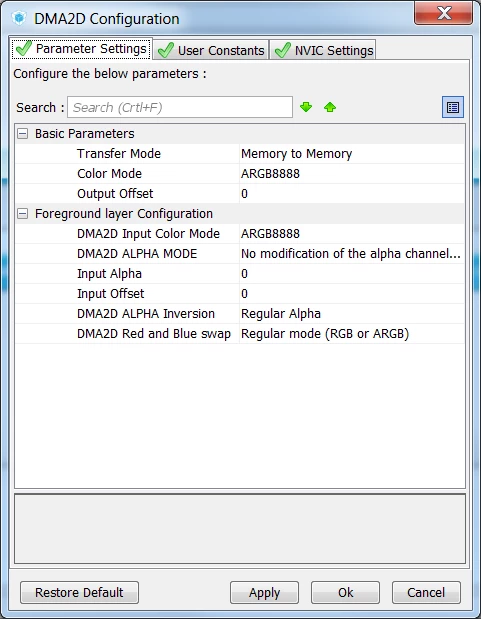

CubeMX 4.22 does not provide the possibility to configure the Alpha inversion and Red&Blue swap parameters since they are not available for this MCU:

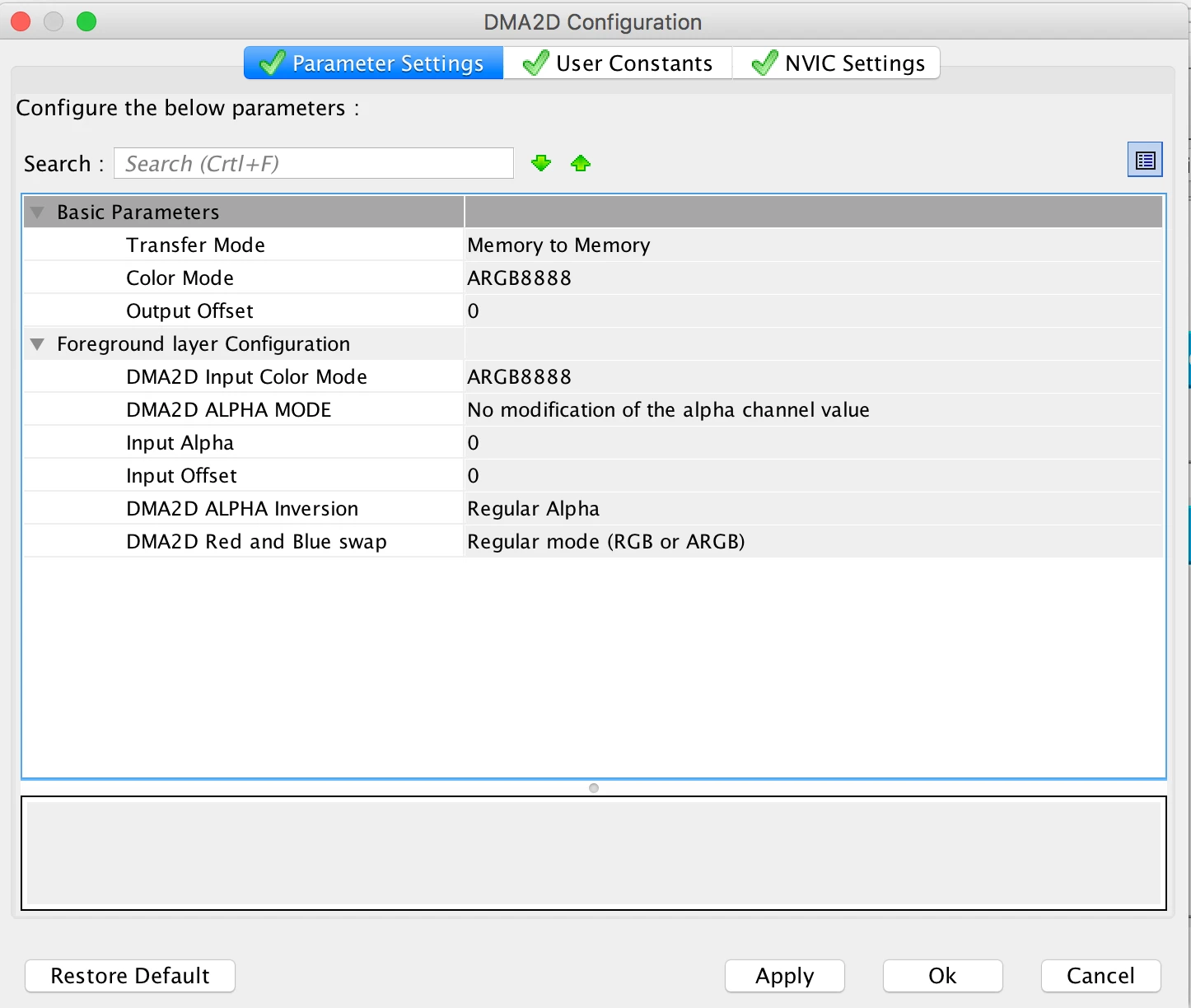

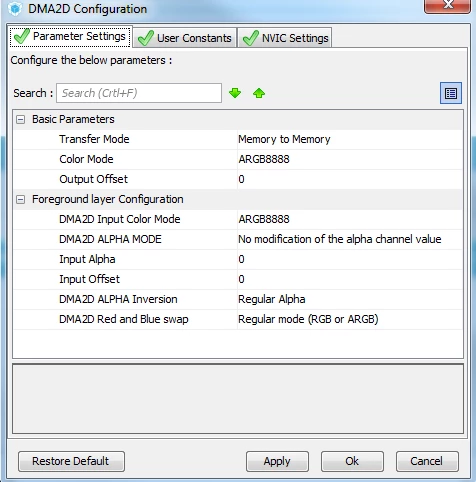

While indeed it is available for other series (ex: F767x):

[Vitaliy Chernobay]

Posted on August 08, 2017 at 17:14

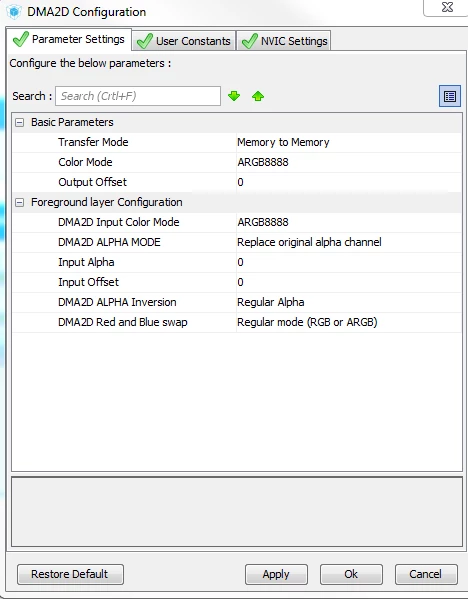

CubeMX (ver. 4.22) DMA2D config for STM32F746IG

________________

Attachments :

746IG_FMC_LTDC_DMA2d.ioc.zip : https://st--c.eu10.content.force.com/sfc/dist/version/download/?oid=00Db0000000YtG6&ids=0680X000006HyWb&d=%2Fa%2F0X0000000b94%2FNemg0iFxHhvs92YCUSnyh29YP1qplbku2XATdZJSKDI&asPdf=false
