STM32H753I-EVAL schematic pack brd extension

[marek2399]

Posted on February 26, 2018 at 16:16

Hello,

could anyone tell me in which format (or which SW) could i see brd file in schematic pack for this board? It is sooo annoying to search it every time they make a new board.

Many thanks

#stm32h753i-eval

[marek2399]

Posted on February 26, 2018 at 16:17

Or could someone post it in altium format?

Many thanks

[waclawek.jan]

Posted on February 26, 2018 at 18:41

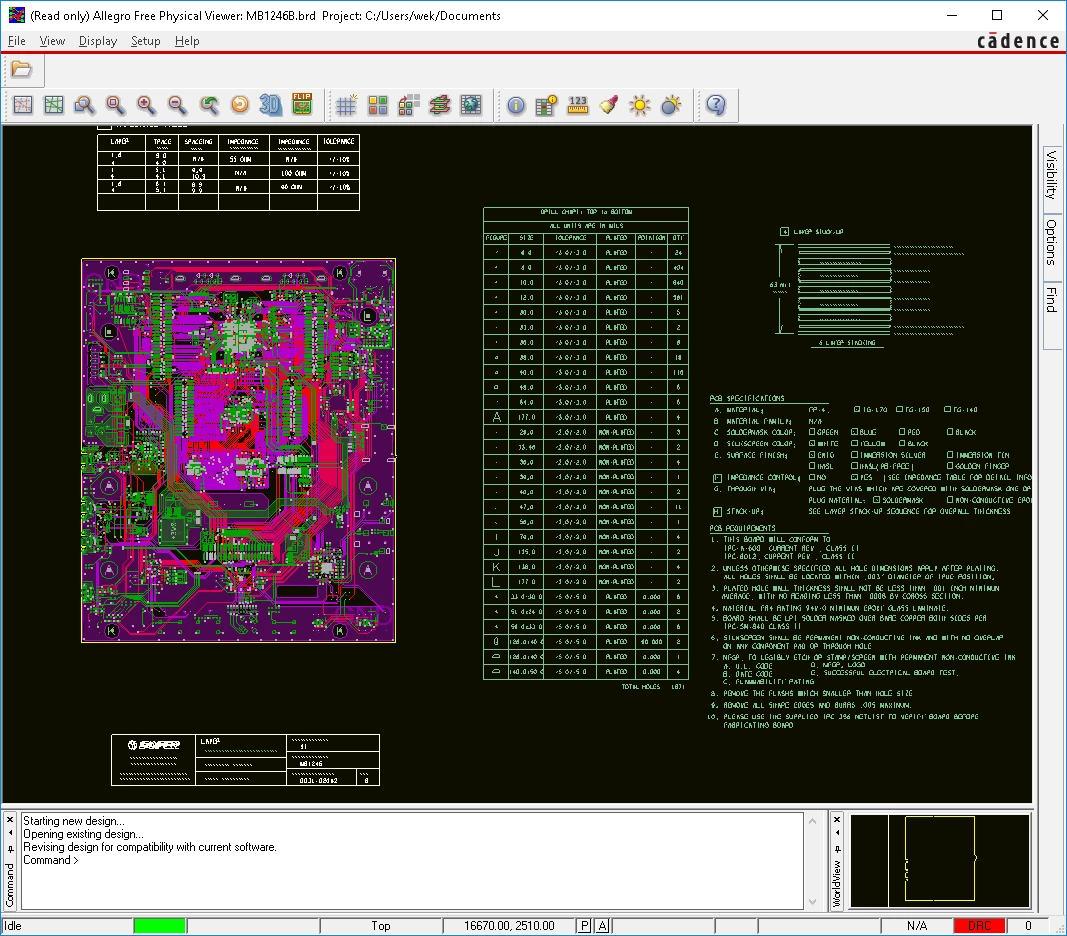

It's Allegro format. You can use the free

https://www.cadence.com/content/cadence-www/global/en_US/home/tools/allegro-downloads-start.html

to have a look at it.

JW

[marek2399]

Posted on February 26, 2018 at 19:51

Many thanks but why the hell they do not provide universal files?

[Tesla DeLorean]

Posted on February 26, 2018 at 20:12

Define universal.

Businesses tend to buy into a specific tool set, they aren't going to generate CAD files for everyone else's outlying choices, and most 'universal' formats usually define an agreeable subset and lose critical tool specific meta-data.

Output in common form tend to be PDF, Gerber, DXF and GDS2
