STM32F103 Shift PWM

[nxp]

Posted on July 06, 2017 at 18:15

Dear Support,

Hi,

I've created two PWM with a 50% duty cycle using STM32F103 and its timer8. Now I would be grateful if you tell me how to shift one of the PWMs?

#stm32f103-shift-pwm

[Tesla DeLorean]

Posted on July 06, 2017 at 19:01

TIM1 should behave in the same way as TIM8

[nxp]

Posted on July 07, 2017 at 07:50

Thank you for replay.

As I said before, I produced two similar PWMs with a 50% duty cycle. Now, I would like to know how to shift one of the PWMs with 180 degree relative to other one?

[Dani Prieto]

Posted on July 07, 2017 at 13:21

Do you need complementary signals?

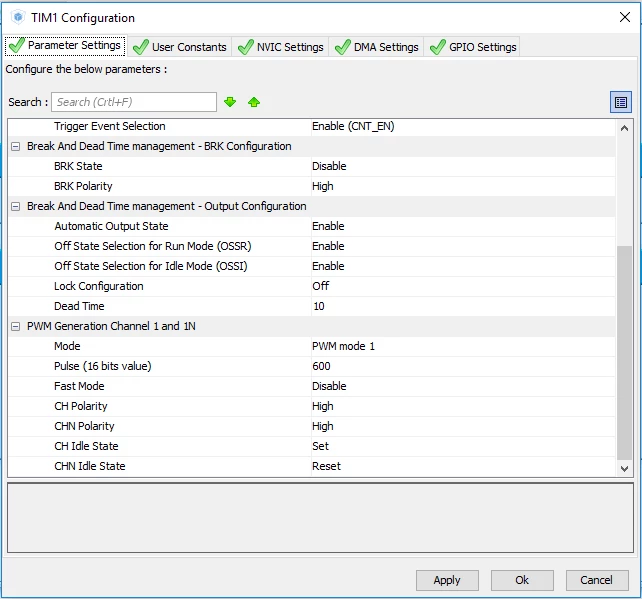

Then configure TIM CH1 and CH1N and the break/dead time like this:
