STM32F030 Temperatur Sensor

[RSeye.1]

i tried to use the internal temperatur sensor but its a little bit strange

when the tempertur goes up the value from the adc goes down

is that right or is my config for the adc wrong ?

[Uwe Bonnes]

Higher temperature give lower output voltage. You are right.

[RSeye.1]

do you have an example how to calculate the temperatur ?

or which value whould by 0 °C ?

the examples i found are only for other stm chips with 2 calibration values

[Andrew Neil]

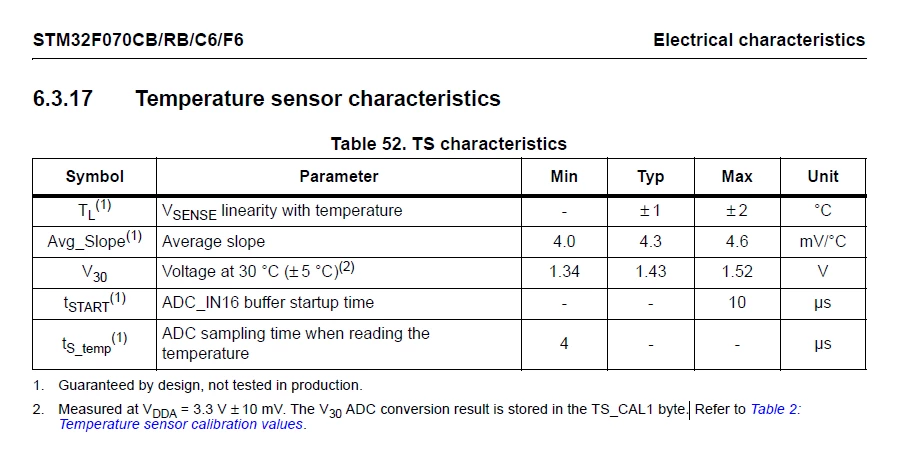

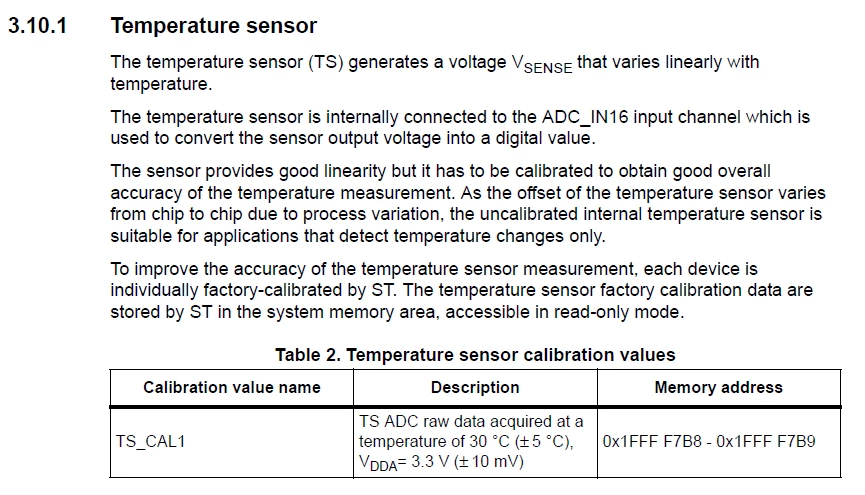

Have you looked at the datasheet:



[RSeye.1]

yes i did but the calculation i tried is wrong

i think its much easier if the datasheet gives some examples

to start with

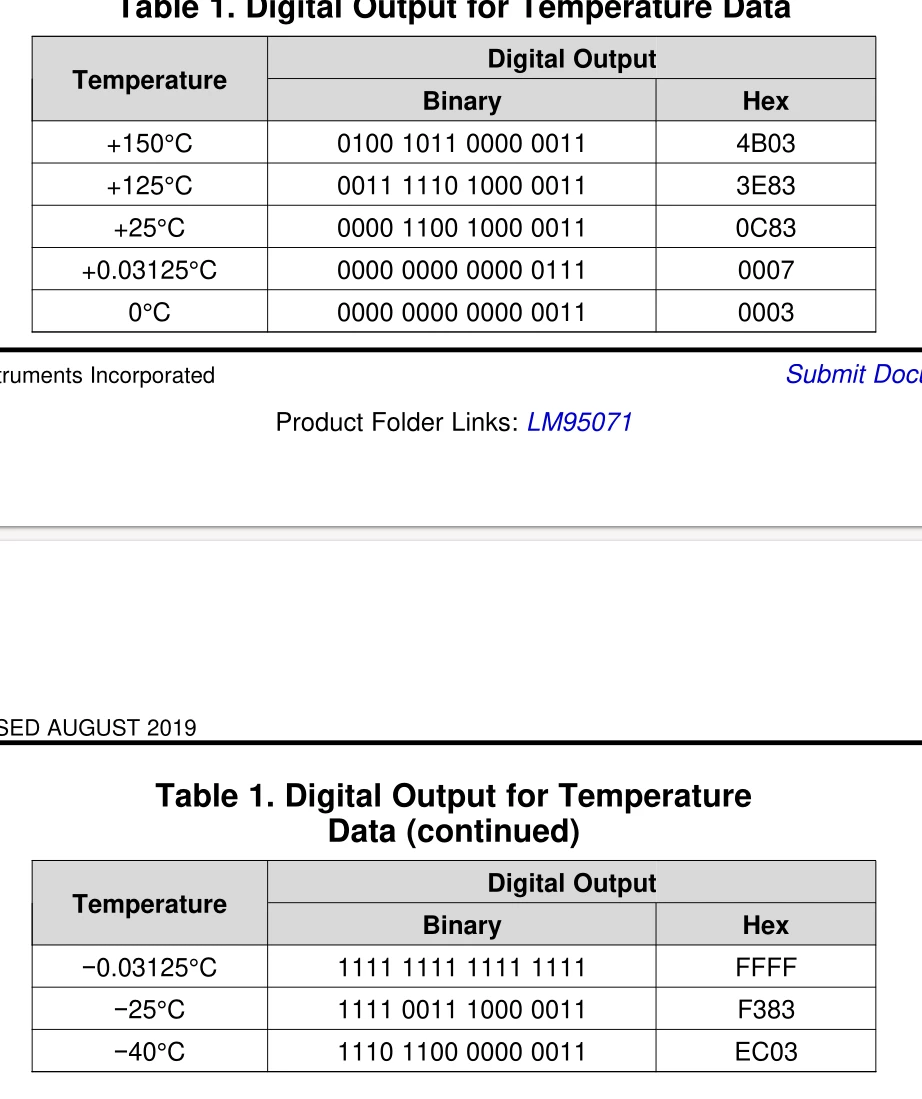

for example from the datasheet of a lm95071



this makes it clear how it has to be calculated

so can you tell me the hexvalue of the ad at 0°C with a vdd of 3.3 V ?

[KiptonM]

The HAL has macros to help.

In this case ADC_Data.word[2] is the ADC result from reading the Voltage Reference

And ADC_Data.word[1] is the ADC result from reading the Temperature Sensor.

uint16_t refv = __HAL_ADC_CALC_VREFANALOG_VOLTAGE(ADC_Data.word[2],ADC_RESOLUTION_12B);

uint16_t temp = __HAL_ADC_CALC_TEMPERATURE(refv,ADC_Data.word[1],ADC_RESOLUTION_12B);

 The thing that got me was that the Temperature Sensor and the Voltage Reference both need a sample time of 5 microseconds or 160.5 clocks in my case. Way higher than I initially assumed.
