Newbie Question (Nucleo-144+STM32L496zg) : LPUART shows no signs of life

[RMand]

I have tried with and without the Cube generated code but no luck getting LPUART to send any printable characters/bytes to an external TeraTerm terminal over VCOM.

I think I am missing some clocking or initialization step -- any help is appreciated.

Cheers

Ramanand

// ########################

int main(void)

{

HAL_Init();

SystemClock_Config();

MX_GPIO_Init();

MX_LPUART1_UART_Init();

}

   return;

 }

[RMand]

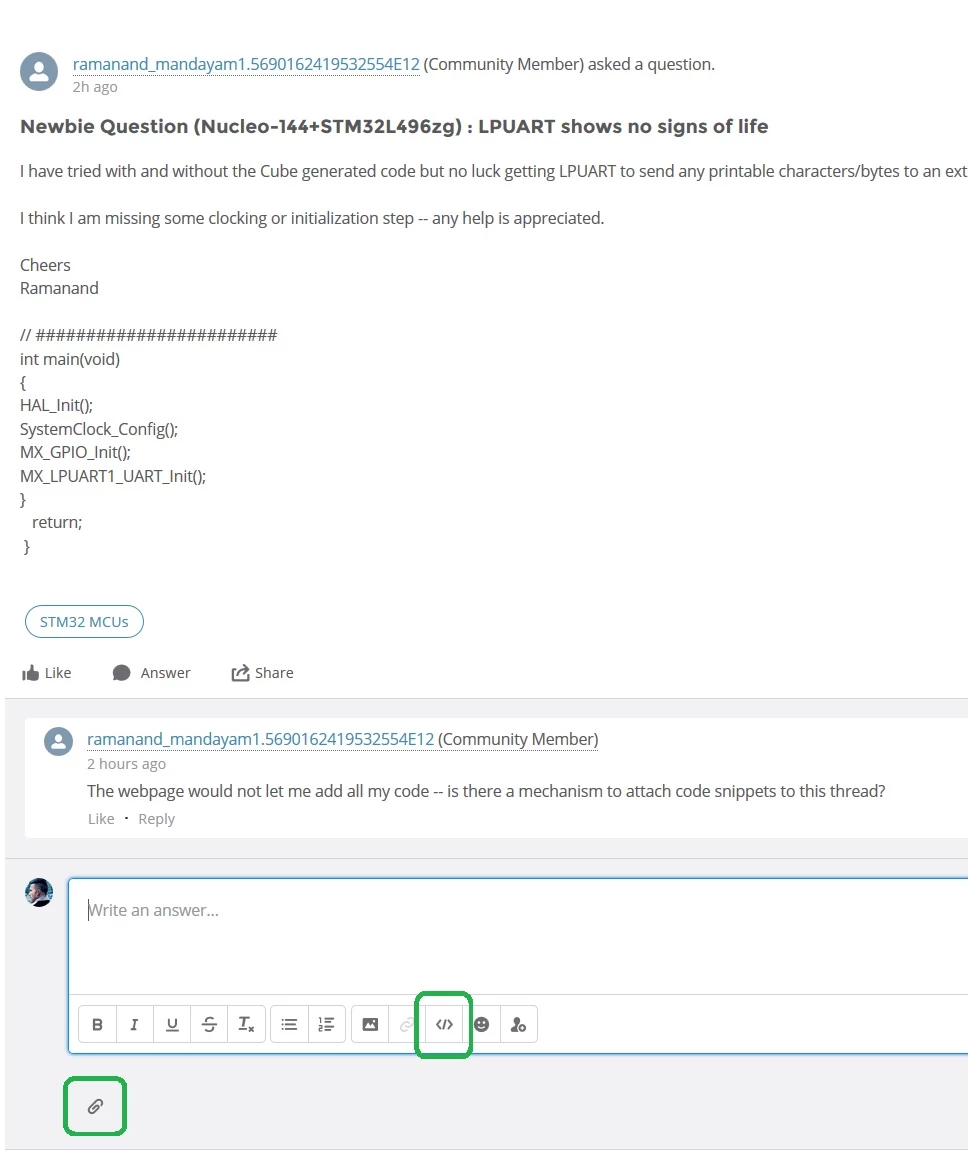

The webpage would not let me add all my code -- is there a mechanism to attach code snippets to this thread?

[Tesla DeLorean]

Ok, so you can edit posts, and you can add code with the </> icon, and also as attachments.

If the pins are on Port G, you need to enable the VDDIO

[Tesla DeLorean]

NUCLEO-L496ZG [e-mail]

/* ## Definition of UARTx related resources ################################### */
/* Definition of UARTx */
#define UARTx LPUART1

/* Definition of UARTx clock resources */
#define UARTx_CLK_ENABLE() __HAL_RCC_LPUART1_CLK_ENABLE()
#define UARTx_TX_PIN_CLK_ENABLE() __HAL_RCC_GPIOG_CLK_ENABLE()
#define UARTx_RX_PIN_CLK_ENABLE() __HAL_RCC_GPIOG_CLK_ENABLE()

/* Definition of UARTx channels pins */
#define UARTx_TX_PIN GPIO_PIN_7
#define UARTx_TX_GPIO_PORT GPIOG
#define UARTx_TX_AF GPIO_AF8_LPUART1

#define UARTx_RX_PIN GPIO_PIN_8
#define UARTx_RX_GPIO_PORT GPIOG
#define UARTx_RX_AF GPIO_AF8_LPUART1


/**
* @brief UART MSP Init
* @param huart: uart handle
* @retval None
*/
void HAL_UART_MspInit(UART_HandleTypeDef *huart)
{
 GPIO_InitTypeDef GPIO_InitStruct;

 /* Enable UARTx GPIO TX/RX clock */
 UARTx_TX_PIN_CLK_ENABLE();
 UARTx_RX_PIN_CLK_ENABLE();

 /* Enable UARTx clock */
 UARTx_CLK_ENABLE();

 /* IOSV bit MUST be set to access GPIO port G[2:15] */
 __HAL_RCC_PWR_CLK_ENABLE();
 HAL_PWREx_EnableVddIO2();

 /* Configure UARTx Rx and Tx as alternate function */
 GPIO_InitStruct.Pin = UARTx_TX_PIN;
 GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
 GPIO_InitStruct.Pull = GPIO_PULLUP;
 GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_MEDIUM;
 GPIO_InitStruct.Alternate = UARTx_TX_AF;
 HAL_GPIO_Init(UARTx_TX_GPIO_PORT, &GPIO_InitStruct);

 GPIO_InitStruct.Pin = UARTx_RX_PIN;
 GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
 GPIO_InitStruct.Pull = GPIO_PULLUP;
 GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_MEDIUM;
 GPIO_InitStruct.Alternate = UARTx_RX_AF;
 HAL_GPIO_Init(UARTx_RX_GPIO_PORT, &GPIO_InitStruct);
}


/* UART handler declaration */
UART_HandleTypeDef UartHandle;

#ifdef __GNUC__
 /* With GCC, small printf (option LD Linker->Libraries->Small printf
 set to 'Yes') calls __io_putchar() */
 #define PUTCHAR_PROTOTYPE int __io_putchar(int ch)
#else
 #define PUTCHAR_PROTOTYPE int fputc(int ch, FILE *f)
#endif /* __GNUC__ */


/**
 * @brief UART Configuration
 * @param None
 * @retval None
 */
 /*
 - BaudRate = 115200 baud
 - Word Length = 8 Bits
 - One Stop Bit
 - No parity
 - Hardware flow control disabled (RTS and CTS signals)
 - Tx and Rx enabled
 */
static void UART_Config(void)
{
 UartHandle.Instance = UARTx;
 UartHandle.Init.BaudRate = 115200;
 UartHandle.Init.WordLength = UART_WORDLENGTH_8B;
 UartHandle.Init.StopBits = UART_STOPBITS_1;
 UartHandle.Init.Parity = UART_PARITY_NONE;
 UartHandle.Init.HwFlowCtl = UART_HWCONTROL_NONE;
 UartHandle.Init.Mode = UART_MODE_TX_RX;
 UartHandle.Init.OverSampling = UART_OVERSAMPLING_16;
 UartHandle.Init.OneBitSampling = UART_ONE_BIT_SAMPLE_DISABLE;

 if(HAL_UART_Init(&UartHandle) != HAL_OK)
 {
 /* Initialization Error */
 Error_Handler();
 }
}

/**
 * @brief Retargets the C library printf function to the UART.
 * @param None
 * @retval None
 */
PUTCHAR_PROTOTYPE
{
 /* Place your implementation of fputc here */
 /* e.g. write a character to the EVAL_COM1 and Loop until the end of transmission */
 HAL_UART_Transmit(&UartHandle, (uint8_t *)&ch, 1, 0xFFFF);

 return ch;
}
