Need Tray dimension MPN-STM32F412ZGT6

[ivan paul]

Hi Expert,

Good day.

STM32F412ZGT6 are come in Reel packaging, I need the tray dimensions to ensure the tray fits properly in the pick-and-place machine. What is the feeding direction and pitch dimension?

Could you help me locate the tray drawings for the STM32F412ZGT6 with the 144-LQFP (20x20x1.4 mm) package?

I can't find out anything regarding this.

Looking for your valuable support.

Thank you.

Ivan Paul



[ivan paul]

Hi Expert,

Looking for your valuable support.

Thank you.

Ivan Paul

[KDJEM.1]

Hello @ivan paul;



Are you looking for LQFP144 package outline and dimensions?

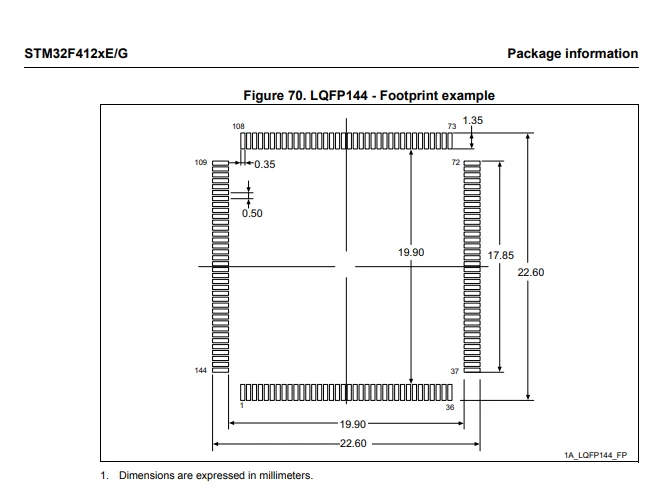

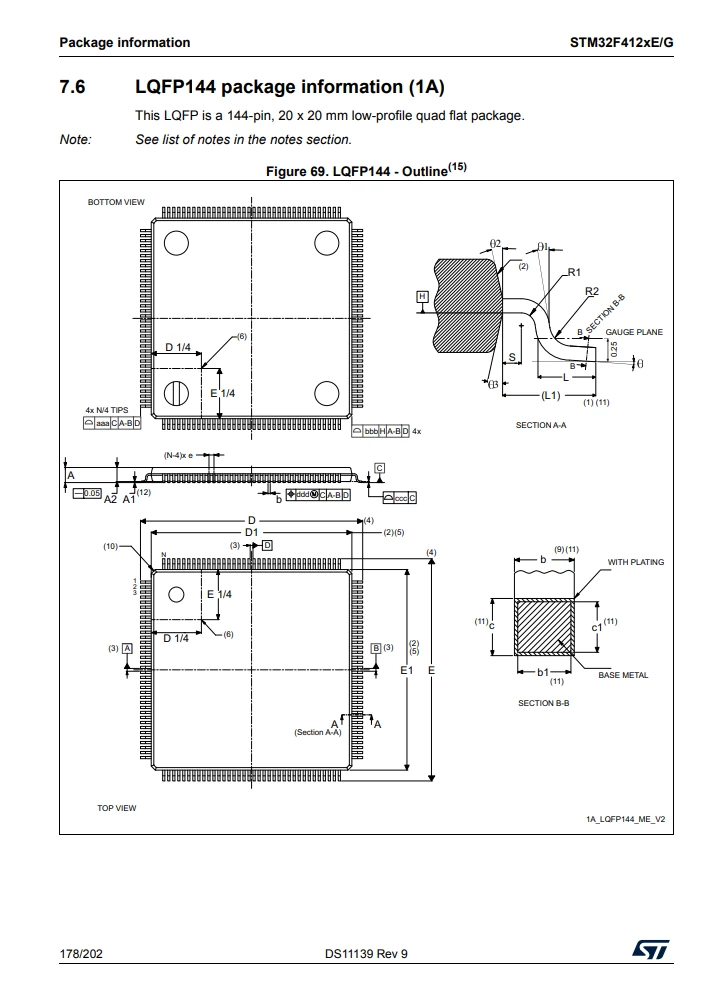

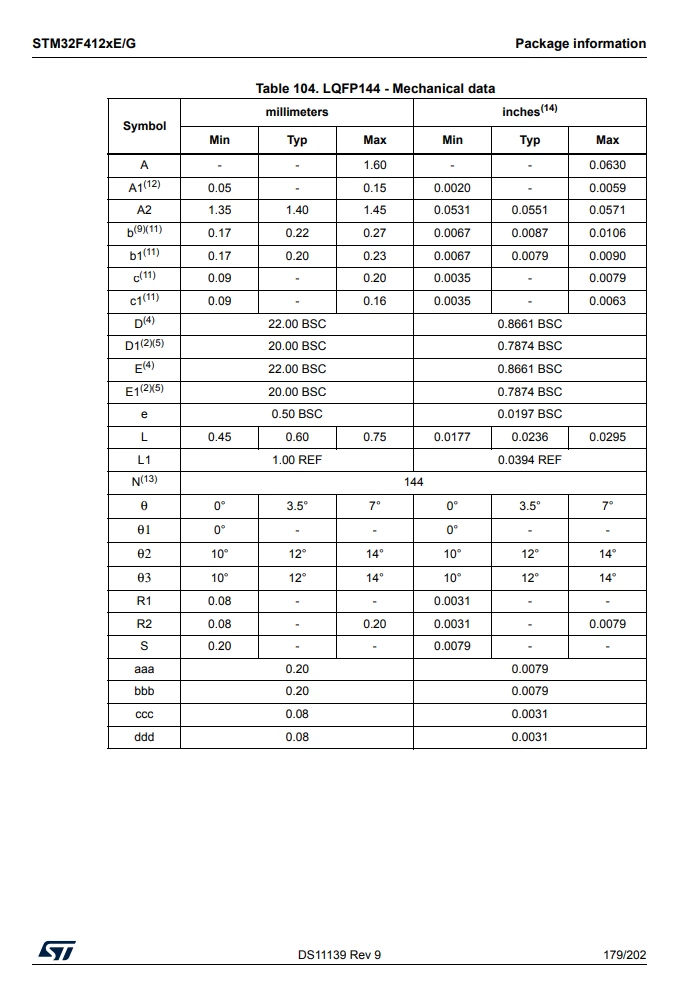

The DS11139 Rev 9 section 7.6 LQFP144 package information (1A) provide LQFP144 mechanical data.



Thank you.

Kaouthar

[KDJEM.1]

Hello @ivan paul ;



Is your request answered?

If you need furthermore support about the initial request, please don't hesitate to update post.

If your request is answered please click on Accept as Solution on the reply which answered your question.



Thank you.

Kaouthar

[ivan paul]

Hi Kaouthar,

Thank you for your reply.

I need the tray package dimensions to ensure the tray fits properly in the pick-and-place machine. What is the feeding direction and pitch dimension?

Could you help me locate the tray drawings for the STM32F412ZGT6 with the 144-LQFP (20x20x1.4 mm) package?

Looking for your valuable support.

Thank you.

Ivan Paul
