Errors in figure

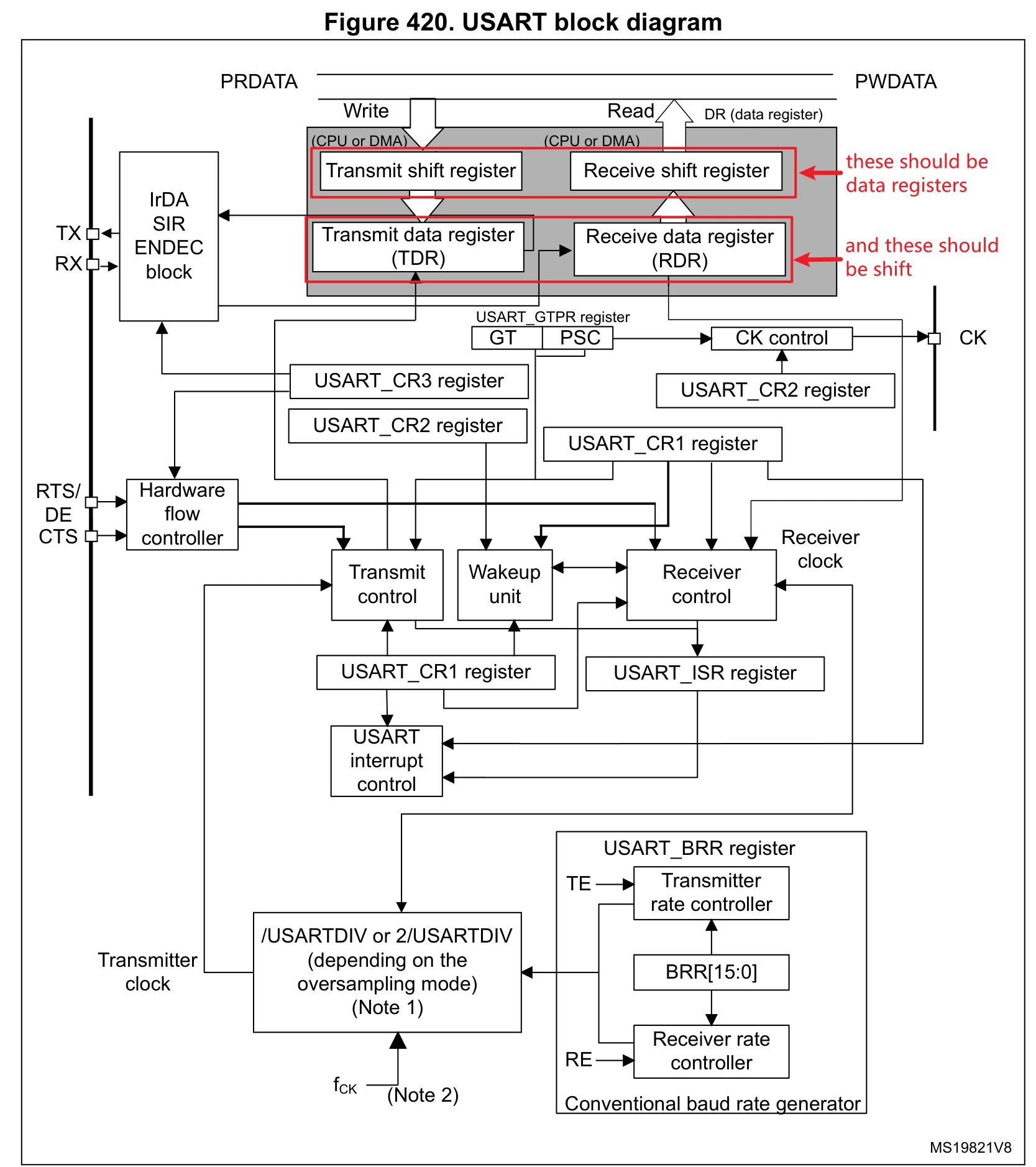

In RM0351 Reference manual Figure 420. USART block diagram, the positions of shift registers and data registers (of both Transmit and Receive) are wrong; their positions should be swapped.


    This topic has been closed for replies.
    STTwo-32
    STTwo-32Best answer
    ST Technical Moderator
    March 20, 2024

    Hello @embed_elephant and welcome to the ST Community :smiling_face_with_smiling_eyes:.

    I confirme the issue on the diagram. I've escalated to the concerned team for correction (Under internal ticket number 178365).

    Thank you for your contribution.



    Best Regards.

    STTwo-32



    To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
    View in thread

    4 replies

    STTwo-32
    STTwo-32Best answer
    ST Technical Moderator
    March 20, 2024

    Hello @embed_elephant and welcome to the ST Community :smiling_face_with_smiling_eyes:.

    I confirme the issue on the diagram. I've escalated to the concerned team for correction (Under internal ticket number 178365).

    Thank you for your contribution.



    Best Regards.

    STTwo-32



    To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
    Andrew Neil
    Andrew Neil
    Super User
    March 20, 2024

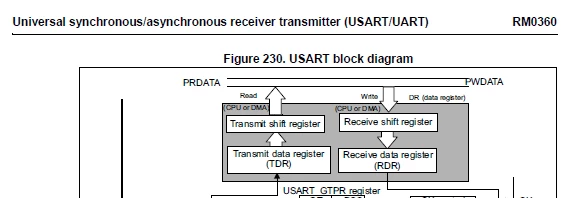

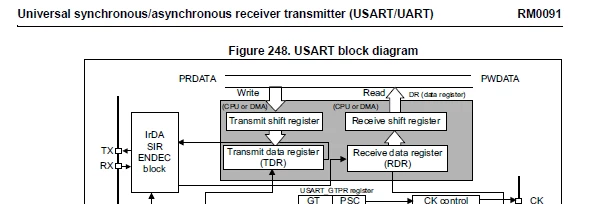

    Looks like the same mistake is repeated in many RMs; eg,









    A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
      STTwo-32
      STTwo-32
      ST Technical Moderator
      March 20, 2024

      Hello @Andrew Neil

      We will check other RMs too. And we will be grateful for all your contributions.

      Best Regards.

      STTwo-32
