CRH support missing in stm32f1xx_ll_gpio.h ?

[Willunen]

Posted on March 05, 2018 at 20:48

Using TrueStudio for STM32 v.9.0.0  and STMCubeMX v.4.24.0

STM32F100C8 and Low Layer drivers.

I noticed that LL support for GPIO ports above GPIO_PIN_7 does not work. I tried to use GPIO_PIN_13 on GPIOC but saw that PIN_5 was being configured instead. Browsing through stm32f1xx_ll_gpio.h, I noticed that CRL is, but CRH isn't used anywhere.

Also RCC_MCO doesn't work, as it is on GPIOA PIN_8.

------------

And shouldn't stm32f1xx_hal_conf.h refer to LL drivers instead of HAL drivers when you selected LL in STM32CubeMX?

It says:

#define HAL_CORTEX_MODULE_ENABLED

#define HAL_DMA_MODULE_ENABLED

#define HAL_FLASH_MODULE_ENABLED

#define HAL_GPIO_MODULE_ENABLED

#define HAL_PWR_MODULE_ENABLED

#define HAL_RCC_MODULE_ENABLED

and then:

#ifdef HAL_RCC_MODULE_ENABLED

 #include 'stm32f1xx_hal_rcc.h'

#endif /* HAL_RCC_MODULE_ENABLED */

#ifdef HAL_GPIO_MODULE_ENABLED

 #include 'stm32f1xx_hal_gpio.h'

#endif /* HAL_GPIO_MODULE_ENABLED */



#ifdef HAL_DMA_MODULE_ENABLED

  #include 'stm32f1xx_hal_dma.h'

#endif /* HAL_DMA_MODULE_ENABLED */



#ifdef HAL_ETH_MODULE_ENABLED

  #include 'stm32f1xx_hal_eth.h'

#endif /* HAL_ETH_MODULE_ENABLED */

Shouldn't that be:

#ifdef HAL_RCC_MODULE_ENABLED

 #include 'stm32f1xx_ll_rcc.h'

#endif /* HAL_RCC_MODULE_ENABLED */

#ifdef HAL_GPIO_MODULE_ENABLED

 #include 'stm32f1xx_ll_gpio.h'

#endif /* HAL_GPIO_MODULE_ENABLED */



#ifdef HAL_DMA_MODULE_ENABLED

  #include 'stm32f1xx_ll_dma.h'

#endif /* HAL_DMA_MODULE_ENABLED */



#ifdef HAL_ETH_MODULE_ENABLED

  #include 'stm32f1xx_ll_eth.h'

#endif /* HAL_ETH_MODULE_ENABLED */

[Willunen]

Posted on March 06, 2018 at 10:28

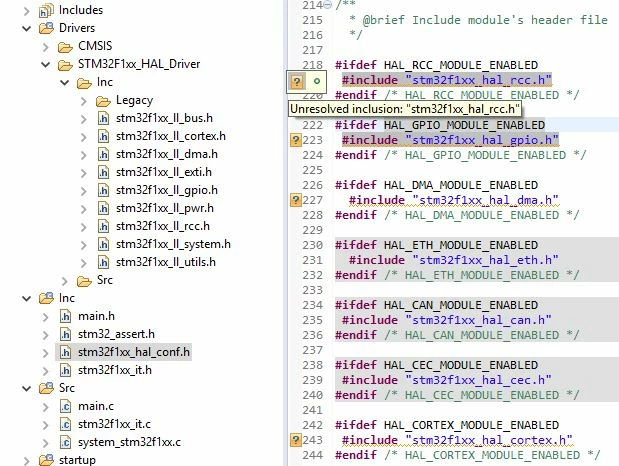

As an addition to the second question about including HAL drivers instead of LL drivers: a screenshot

No doubt I'm doing something wrong, but I can't find what....

[Imen.D]

Posted on March 06, 2018 at 13:45

Hello

Lunenburg.Wilko

,

I want to thank you for your issues report.

The issue for LL GPIO pins is already confir

med and will be fixed in the next release.

https://community.st.com/0D50X00009XkYowSAF

.

About

including HAL drivers instead of LL drivers, Iwill check and raise internally your feedback.

Best Regards,

Imen

[Willunen]

Posted on March 06, 2018 at 14:48

 ,

 ,

Thanks Imen, I solved it this way by adding this to MX_GPIO_Init

RCC->,APB2ENR |= RCC_APB2ENR_IOPCEN, , ,  , , ,  , , ,  , , ,  , , ,  , , , , //enable APB2_clock GPIOC

 ,

GPIOC->,CRH |= GPIO_CRH_MODE13_1, , ,  , , ,  , , ,  , , ,  , , ,  , , ,  , , ,  , , ,  ,//PC13 output

 ,

GPIOC->,CRH &,= ~GPIO_CRH_CNF13, , ,  , , ,  , , ,  , , ,  , , ,  , , ,  , , ,  , , ,  , , ,  ,//PC13 push pull

And by changing the stm32f1xx_hal_conf.h like this:

♯ ifdef HAL_RCC_MODULE_ENABLED

 ,

 , ♯ include 'stm32f1xx_ll_rcc.h' , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , //changed from _hal_ to _ll_

 ,

♯ endif /* HAL_RCC_MODULE_ENABLED */

♯ ifdef HAL_GPIO_MODULE_ENABLED

 ,

 , ♯ include 'stm32f1xx_ll_gpio.h'

 ,

♯ endif /* HAL_GPIO_MODULE_ENABLED */

 ,

.

.

.

 ,

Kind Regards,

Wilko

[Imen.D]

Posted on March 22, 2018 at 10:04

Hello,

We would inform you that

GPIO LL driver issue is fixed in

the new patch of

STM32CubeF1 Firmware package V1.6.1.

Kind Regards

Imen
