Base or prototype board for STM32VL-Discovery

[kyawlwin]

Posted on July 10, 2011 at 17:12

Hi dude,

      I am a  user of STM32VL-Discovery board and looking for a base board to evaluate the features of STM32VL-Discovery as like lpcxpresso from NXP.

 lpcxpresso target board : http://www.embeddedartists.com/products/lpcxpresso/lpc1769_xpr.php

lpcxpresso base board: http://www.embeddedartists.com/products/lpcxpresso/xpr_base.php

lpcxpresso prototype board:  http://www.embeddedartists.com/products/lpcxpresso/xpr_prototype.php

Regards,

Aung

#discovery-breadboard #discovery-breadboard

[Andrew Neil]

Posted on July 10, 2011 at 19:18

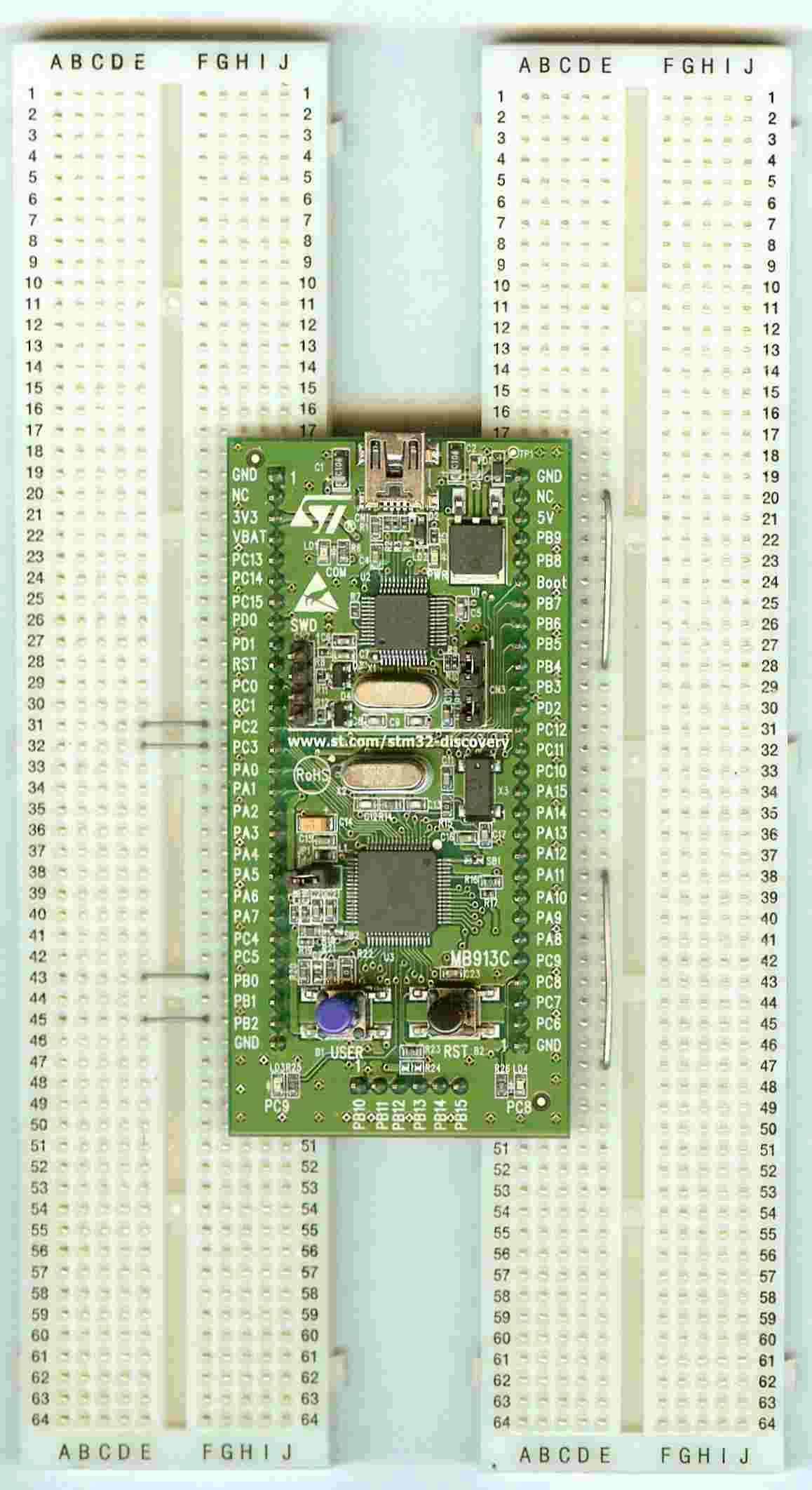

I'm not aware of such a thing, but you can mount it on standard breadboards like this:

Similarly with any other 0.1'' prototyping method...

[Andrew Neil]

Posted on July 10, 2011 at 19:28

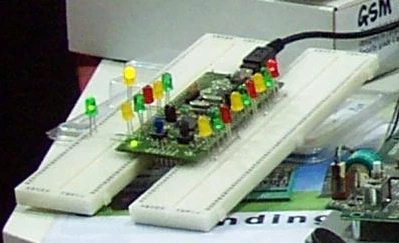

Or you could do it like this:

/7743ec33

[kk6gm]

Posted on September 27, 2011 at 05:03

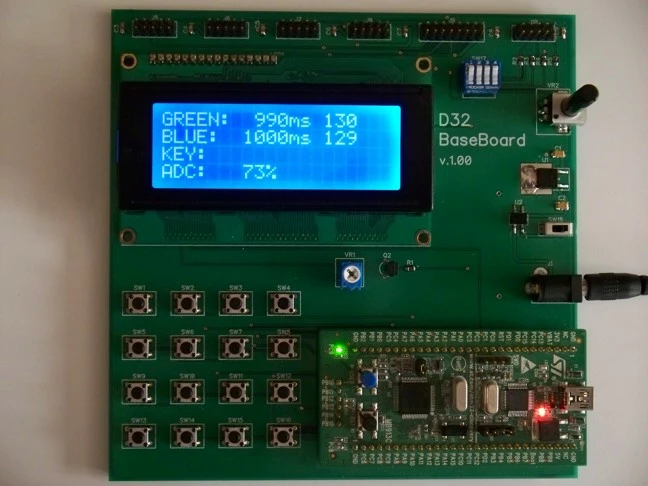

How about something like this?  I'm working on submitting it to kickstarter to get some built up after I tweak the design a bit.

[eejaz]

Posted on September 30, 2011 at 20:14

Nice Idea. Pretty much impressed

[kohchengsing]

Posted on October 12, 2011 at 03:16

Try wire-wrapping.

See

http://singamicro-63-stm32l152-k1.blogspot.com/p/pictures.html

[choky_ndhie27]

Posted on October 13, 2011 at 14:10

Hello all,

I

want to run



a



servo



using the



STM32



Discovery

,

if



you



have a



suggestion



program to

run



the



servo

?

or



you have a



simple



code to



run the



servo



on the



STM32



Discovery

Thank You

[rmteo]

Posted on October 27, 2011 at 23:39

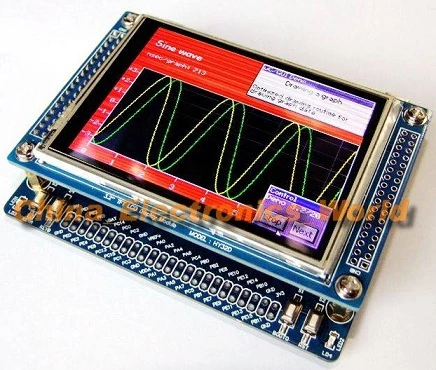

I use the ST-VLDiscovery purely as a debugger (and programmer with ST-LINK).  For development, I prefer one of these (about $45 shipped from the auction sites):

CPU:

STM32F103VCT6

, TQFP100;

FLASH: 256K BYTES, SRAM: 48K BYTES

4 X LED (one Power LED)

1 X USB to RS232 (USB to RS232 port)

1 X USB2.0 Device mode interface.

1 X Micro SD TF card socket.

1 X 3.2-inch TFT (with touch screen) interface, can be controlled via MCU, FSMC 16-bit interface mode.

1 X JTAG

4 X functional keys

1 x RTC with battery back-up battery holder(Battery is not included).

All GPIO port Lead out.

They are compact, can be easily powered by batteries (I use 3x AA NiMH) and have a useful variety of features. I also occasionally use the MCU on the ST-VLD to do processor-to-processor development using jumpers.

[Andrew Neil]

Posted on October 30, 2011 at 17:06

''1 X 3.2-inch TFT (with touch screen) interface''

Is that just the interface, or is the actual display module included (as shown in your picture)?



[rmteo]

Posted on October 30, 2011 at 17:46

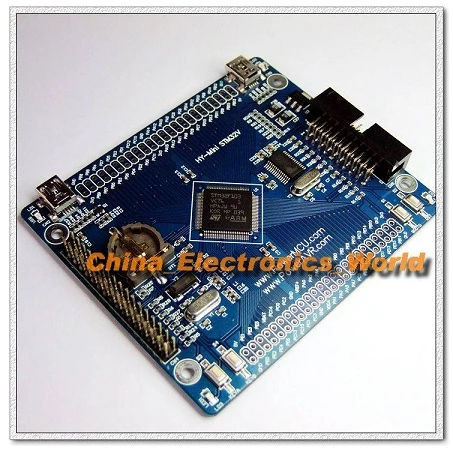

Everything that you see in the picture (including the TFT LCD and touch panel) is included. Here is an image of the MCU board alone.

[rmteo]

Posted on November 04, 2011 at 19:11

I have 2 of them.  If you are in USA and want one quickly, I will send it to you for $45 (shipping included).
