STM32cubeMX clock configuration 168MHz

[harinath]

Posted on April 01, 2014 at 09:49

Hello community,

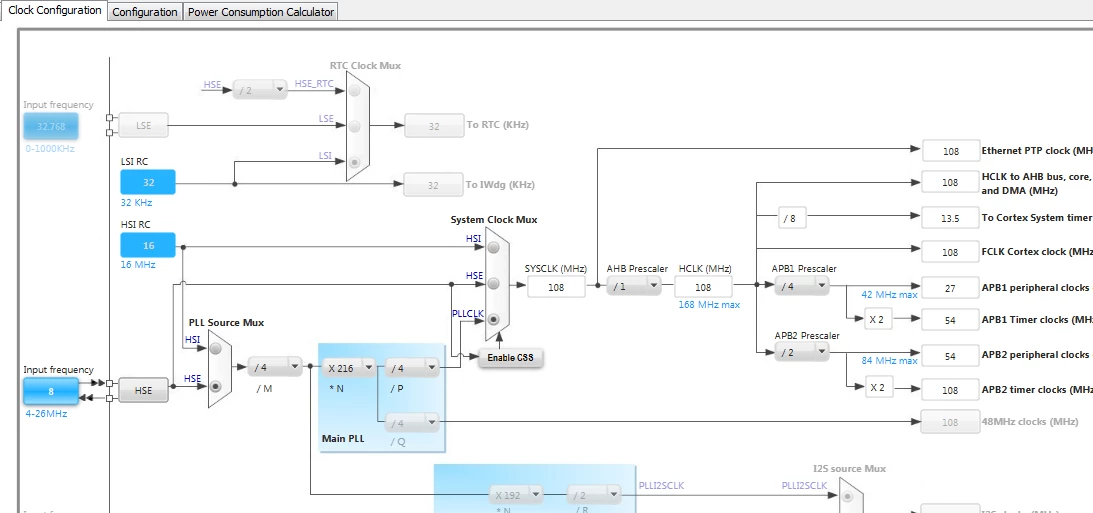

I getting my hands on STM32cubeMX tool for first time to generate project for STM32F405RG. The board has 8MHz oscillator connected to  OSC_IN, OSC_OUT pins. I was trying to configure the board to run at 168MHz, but I was only able to configure max 108MHz.

However I was able to configure 168MHz using the other clock configuration tool:

http://www.st.com/web/en/catalog/tools/PF257927

How could I be able to clock the MCU to 168MHz ?

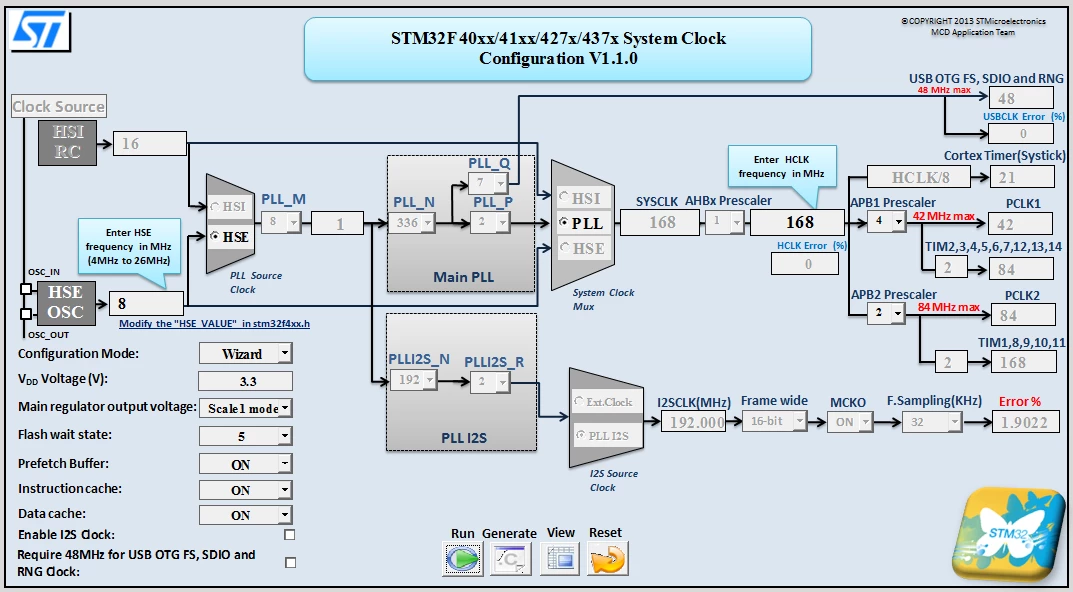

Pls find the attached files ( STM32cubeMX project file, MS EXCEL clock config tool screenshot).

#clock #stm32f4cube

[stm32cube-t]

Posted on April 02, 2014 at 10:38

Hello,

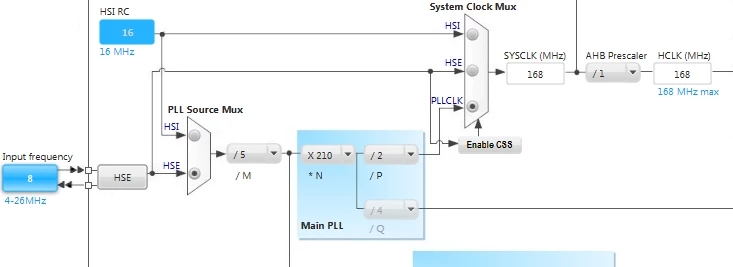

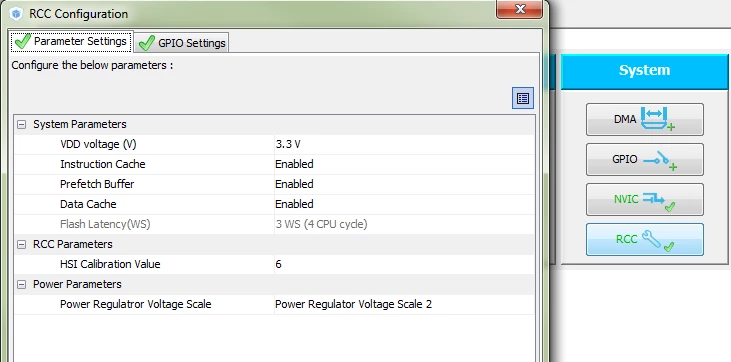

Please use the configuration below (PLL M : 5, PLLN : 210, PLL P : 2)

[harinath]

Posted on April 03, 2014 at 02:55

Thank you.
