where are the schematics for the nucleo 64 board?

  • May 18, 2023
  • 2 replies
  • 1959 views

the revision history shows they are now hidden from the user guide which seems a little pointless.

the nucleo 32 user guide has them

This topic has been closed for replies.
Best answer by S.Ma

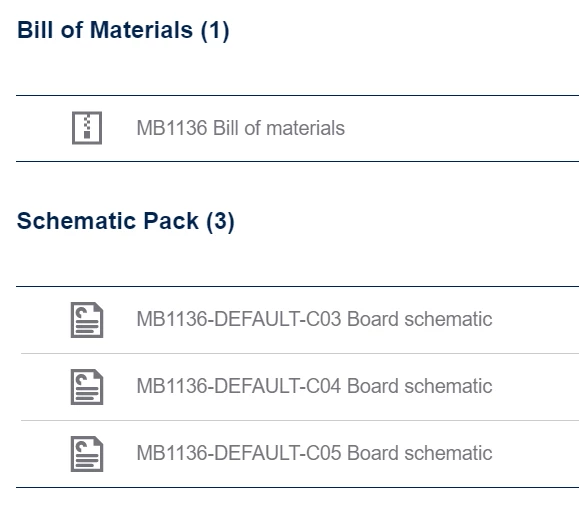

I usually get them online at "CAD resources" tab





2 replies

S.Ma
S.MaBest answer
Principal
May 18, 2023

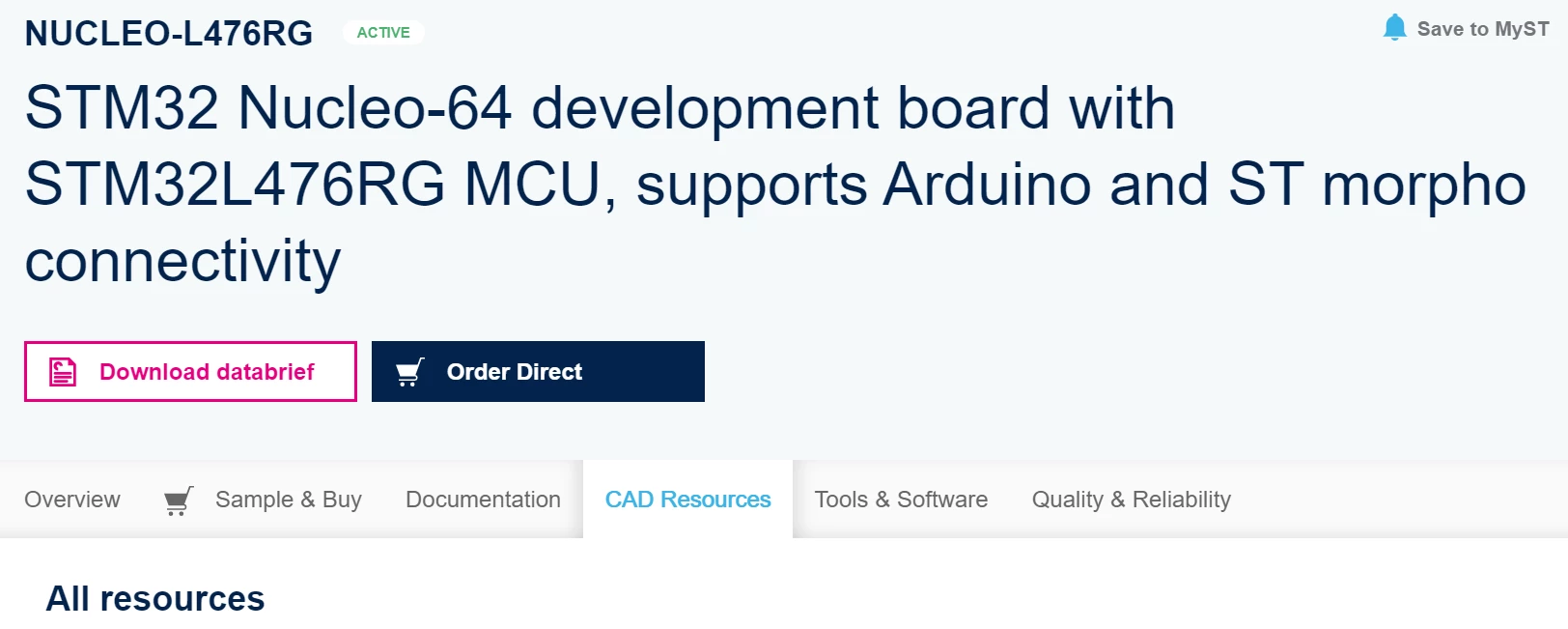

I usually get them online at "CAD resources" tab





Tesla DeLorean
Tesla DeLorean
Guru
May 18, 2023

Yes, I preferred when they were in the User Manuals, I just think with the explosion of boards and parts that's just gotten to be unmanageable.

Multiple variants now under "CAD Resources" tabs.

Also review project related "README.TXT" files for any special consideration when building them for specific design revisions, as pins and solder-bridge options can change / evolve.

Tips, Buy me a coffee, or three.. PayPal Venmo (See Profile) Up vote any posts that you find helpful, it shows what's working..
