Page I of this document contains the top and bottom views of the STM32U5A9J-DK board.

BUT...

Page 17 shows a 'different' picture when describing the configuration of the board for using STLINK-V3E.

Is there an updated version of this document that fixes this mismatch?

This topic has been closed for replies.
STTwo-32
STTwo-32Best answer
ST Technical Moderator
November 13, 2023

Hello @RMand and welcome back to the ST Community :smiling_face_with_smiling_eyes:.

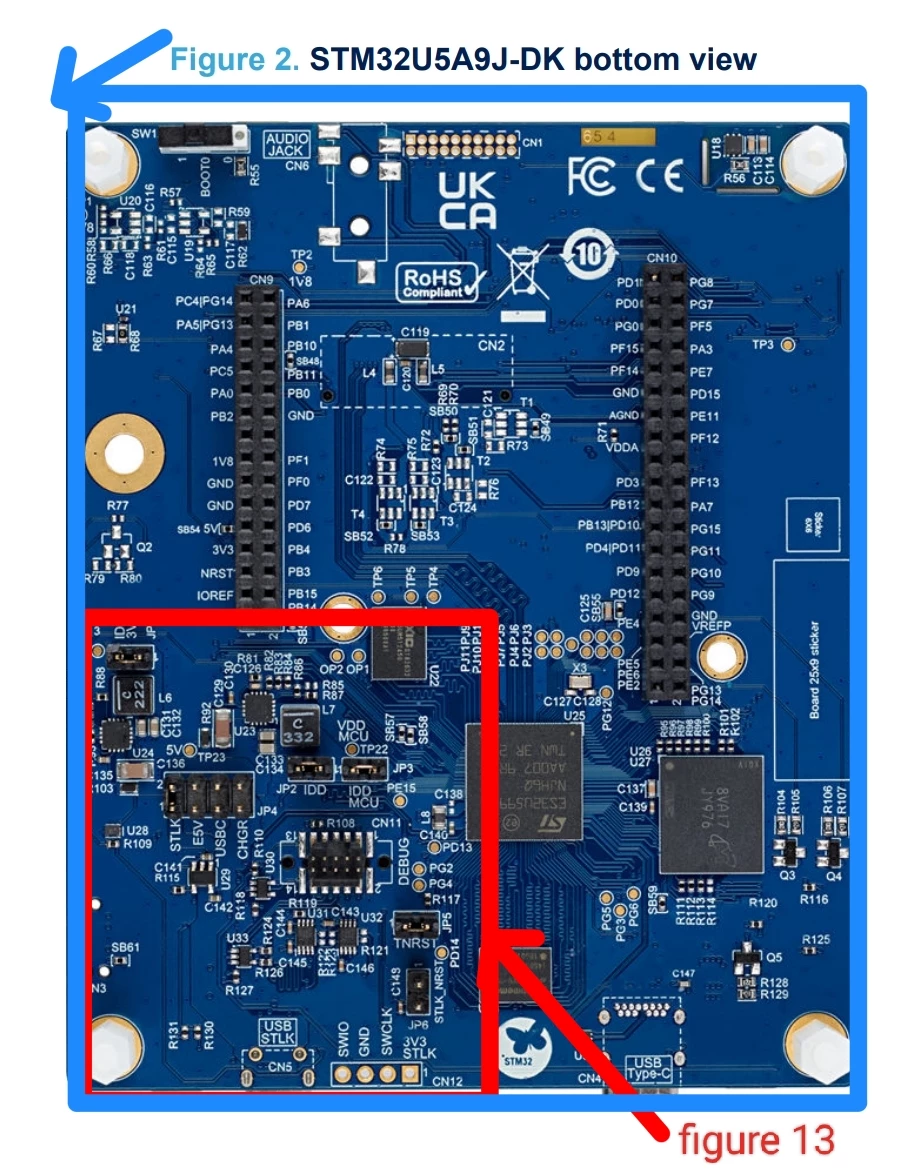

I can't see any mismatch between both pictures. The picture on the page 1 describe the full bottom view of the STM32U5A9J-DK. But, the picture on the page 17 represent the default configuration to use the embedded STLINK-V3E of the board. So to make details clearer, We zoom on the conserned part of the board.


Best regards.

STTwo-32

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
View in thread

2 replies

STTwo-32
STTwo-32Best answer
ST Technical Moderator
November 13, 2023

Hello @RMand and welcome back to the ST Community :smiling_face_with_smiling_eyes:.

I can't see any mismatch between both pictures. The picture on the page 1 describe the full bottom view of the STM32U5A9J-DK. But, the picture on the page 17 represent the default configuration to use the embedded STLINK-V3E of the board. So to make details clearer, We zoom on the conserned part of the board.


Best regards.

STTwo-32

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
RMand
RMandAuthor
Associate III
November 13, 2023

Thanks. I must have overlooked the line in the document where it says "the figure below is a zoomed in version and NOT the full board".....
