STM32F446RE Schematic Diagram

[ASaye.3]

Hi, I am looking for STM32F446RE Schematic Diagram. Can any Help me, where to find the Schematic Diagram of STM32F446RE, I have checked the documents of ST(https://www.st.com/en/microcontrollers-microprocessors/stm32f446re.html#documentation) I did not found there.

[gbm]

And what exactly do you mean by a "schematic diagram" of a microcontroller? The block diagram is at the beginning of the Reference Manual.

[S.Ma]

Schematics = pcb board design

[Imen.D]

Hello @ASaye.3​ ,

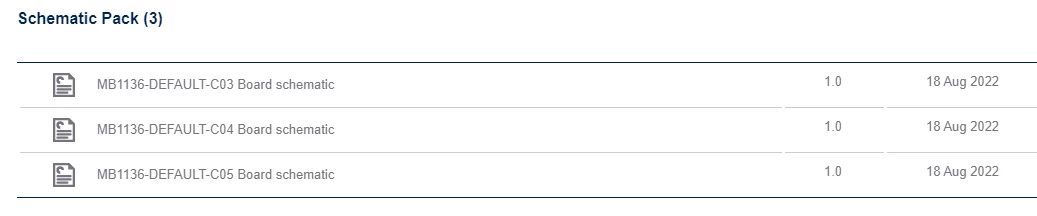

You have the Schematics for NUCLEO-F446RE in this page:

NUCLEO-F446RE - STM32 Nucleo-64 development board with STM32F446RE MCU, supports Arduino and ST morpho connectivity - STMicroelectronics

When your question is answered, please close this topic by choosing Select as Best. This will help other users find that answer faster.

Imen
