STM32CubeIDE for VS Code debug configuration (launch.json)

[Nawres GHARBI]

Summary

This article details the configuration options for debugging STM32 projects in VS Code using the STM32CubeIDE extension.

• Summary
• 1. STM32Cube: STM32 launch STLINK GDB server
• 2. STM32Cube: STM32 launch OpenOCD
• 3. STM32Cube: STM32 launch J-Link GDB server
• 3.1 Notes
• 4. Examples
• 4.1 STM32 STLINK GDB server
• 4.2 STM32 J-Link GDB server
• 4.3 STM32 OpenOCD
• 5. Tips
• 5.1 How to debug a secure project
• 5.2 How to debug a dual-core project (for example, STM32H7)
• 5.3 How to debug a project with an external loader
• 5.4 Advanced debug launch configuration tips
• 5. Support
• Related links

These are the three main debug configurations that you may need with STM32CubeIDE for VS Code extension.

1. STM32Cube: STM32 launch STLINK GDB server

Type: "stlinkgdbtarget"

• Uses the STLINK GDB server (provided by STM32CubeProgrammer).
• Suitable for official STLINK hardware probes.

Key parameters:

Parameter	Type	Description
type	string	Must be "stlinkgdbtarget". Specifies the debugger type.
request	string	"launch" to start a new debug session, or "attach" to connect to a running target.
name	string	User-friendly configuration name
cwd	string	Working directory for the debug session.
preBuild	string	Command to run before starting the debug session (for example, build task).
runEntry	string	Entry point symbol to run to after reset (for example, "main").
serverExtLoader	array	List of external loader objects for external flash (see below for object structure).
imagesAndSymbols	array	List of objects specifying images (binaries) and their symbols to load (see below).
device	string	STM32 device part number (optional, for example, "STM32H7R3ZI").
interface	string	Debug interface, typically "swd" or "jtag" (optional).
stopAtEntry	boolean	If true, stops at the entry point after reset (optional).
svdFile	string	Path to SVD file for peripheral register view (optional).
serverArgs	array	Additional arguments to pass to the STLINK GDB server (optional).
gdbPath	string	Path to the GDB executable (optional).
gdbArgs	array	Additional arguments for GDB (optional).
postRestartCmds	array	GDB commands to execute after restart (optional).
postAttachCmds	array	GDB commands to execute after attach (optional).

serverExtLoader object:

Field	Type	Description
loader	string	Path to the external loader file (.stldr).
initialize	boolean	Whether to initialize the loader at session start.

imagesAndSymbols object:

Field	Type	Description
imageFileName	string	Path to the binary/ELF file to load.
symbolsFileName	string	Path to the symbols file (optional, if separate from image).

2. STM32Cube: STM32 launch OpenOCD

Type: "openocdtarget"

• Uses OpenOCD as the debug server.
• Flexible for various debug probes and custom scripts.

Key parameters:

Parameter	Type	Description
type	string	Must be "openocdtarget". Specifies the debugger type.
request	string	"launch" or "attach".
name	string	User-friendly configuration name.
cwd	string	Working directory for the debug session.
preBuild	string	Command to run before starting the debug session.
openOCDConfigFiles	array	List of OpenOCD config files (for example, interface, target, board).
openOCDSearchDirs	array	Directories to search for OpenOCD scripts.
runEntry	string	Entry point symbol to run to after reset (for example, "main").
imagesAndSymbols	array	List of objects specifying images (binaries) and their symbols to load.
device	string	STM32 device part number (optional).
interface	string	Debug interface, typically "swd" or "jtag" (optional).
stopAtEntry	boolean	If true, stops at the entry point after reset (optional).
svdFile	string	Path to SVD file for peripheral register view (optional).
serverArgs	array	Additional arguments to pass to OpenOCD (optional).
gdbPath	string	Path to the GDB executable (optional).
gdbArgs	array	Additional arguments for GDB (optional).
postRestartCmds	array	GDB commands to execute after restart (optional).
postAttachCmds	array	GDB commands to execute after attach (optional).

3. STM32Cube: STM32 launch J-Link GDB server

Type: "jlinkgdbtarget"

• Uses SEGGER J-Link GDB server.
• For SEGGER J-Link hardware probes.

Key Parameters:

Parameter	Type	Description
type	string	Must be "jlinkgdbtarget". Specifies the debugger type.
request	string	"launch" or "attach".
name	string	User-friendly configuration name.
cwd	string	Working directory for the debug session.
preBuild	string	Command to run before starting the debug session.
jlinkDevice	string	Device name for J-Link (for example, "STM32H7R3ZI").
interface	string	Debug interface, typically "swd" or "jtag".
runEntry	string	Entry point symbol to run to after reset (for example, "main").
imagesAndSymbols	array	List of objects specifying images (binaries) and their symbols to load.
stopAtEntry	boolean	If true, stops at the entry point after reset (optional).
svdFile	string	Path to SVD file for peripheral register view (optional).
serverArgs	array	Additional arguments to pass to the J-Link GDB server (optional).
gdbPath	string	Path to the GDB executable (optional).
gdbArgs	array	Additional arguments for GDB (optional).
postRestartCmds	array	GDB commands to execute after restart (optional).
postAttachCmds	array	GDB commands to execute after attach (optional).



3.1 Notes

• The "type" field determines the debug server: "stlinkgdbtarget", "openocdtarget",  "jlinkgdbtarget"or other type.
• Use "serverExtLoader" for external flash loaders if needed.
• "imagesAndSymbols" allows specifying multiple binaries or symbol files.
• Adjust "preBuild", "cwd", and other fields as needed for your project.

4. Examples

4.1 STM32 STLINK GDB server

{
 "type": "stlinkgdbtarget",
 "request": "launch",
 "name": "STM32Cube: STM32 Launch ST-Link GDB Server",
 "cwd": "${workspaceFolder}",
 "preBuild": "${command:st-stm32-ide-debug-launch.build}",
 "runEntry": "main",
 "serverExtLoader": [
 {
 "loader": "C:/Users/gharbin/AppData/Local/stm32cube/bundles/programmer/2.21.0-a10/bin/ExternalLoader/MX25UW25645G_NUCLEO-H7S3L8.stldr",
 "initialize": false
 }
 ],
 "imagesAndSymbols": [
 {
 "imageFileName": "${command:st-stm32-ide-debug-launch.get-projects-binary-from-context1}"
 },
 {
 "imageFileName": "${command:st-stm32-ide-debug-launch.get-projects-binary-from-context2}"
 }
 ],
 "device": "STM32H7R3ZI",
 "interface": "swd",
 "stopAtEntry": false,
 "svdFile": "${workspaceFolder}/Drivers/CMSIS/Device/ST/STM32H7RSxx/Include/STM32H7R3.svd"
}

4.2 STM32 J-Link GDB server

{
 "type": "jlinkgdbtarget",
 "request": "launch",
 "name": "STM32Cube: STM32 Launch J-Link GDB Server",
 "cwd": "${workspaceFolder}",
 "preBuild": "${command:st-stm32-ide-debug-launch.build}",
 "jlinkDevice": "STM32H7R3ZI",
 "interface": "swd",
 "runEntry": "main",
 "imagesAndSymbols": [
 {
 "imageFileName": "${command:st-stm32-ide-debug-launch.get-projects-binary-from-context1}"
 }
 ],
 "stopAtEntry": false,
 "svdFile": "${workspaceFolder}/Drivers/CMSIS/Device/ST/STM32H7RSxx/Include/STM32H7R3.svd"
}

4.3 STM32 OpenOCD

{
 "type": "openocdtarget",
 "request": "launch",
 "name": "STM32Cube: STM32 Launch OpenOCD",
 "cwd": "${workspaceFolder}",
 "preBuild": "${command:st-stm32-ide-debug-launch.build}",
 "openOCDConfigFiles": [
 "interface/stlink.cfg",
 "target/stm32h7x.cfg"
 ],
 "openOCDSearchDirs": [
 "C:/OpenOCD/scripts"
 ],
 "runEntry": "main",
 "imagesAndSymbols": [
 {
 "imageFileName": "${command:st-stm32-ide-debug-launch.get-projects-binary-from-context1}"
 }
 ],
 "device": "STM32H7R3ZI",
 "interface": "swd",
 "stopAtEntry": false,
 "svdFile": "${workspaceFolder}/Drivers/CMSIS/Device/ST/STM32H7RSxx/Include/STM32H7R3.svd"
}

5. Tips

5.1 How to debug a secure project

1. Create a launch.json.
2. Add a second image to be loaded.
3. Change the context for the new created image.

4. When launching the debug, the selected bin must follow the order nonsecure then secure.
5. Save your presets for later use if needed.


5.2 How to debug a dual-core project (for example, STM32H7)

1. Create a launch.json.

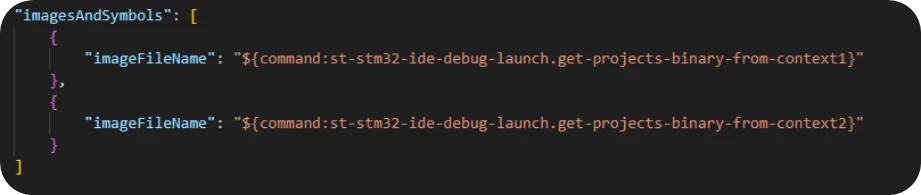

2. Add a new image context and change its number for the second binary to be loaded.
3. Add "serverShared" parameter with the value set as true.
4. Add "serverHaltAllCores" parameter with the value set as true.

This configuration is dedicated to the CM7 core.
Let us create a new configuration for the CM4 core.

1. Create another config by pressing the [add configuration] button displayed in the launch.json.

2. Remove the existing image and replace it by a symbol file name parameter as the second configuration will be used for attaching debug without flashing the device.
3. Add server shared parameter with the value set as true.
4. Add the server AP ID with value 3, which represents the port ID for the CM4 core.
5. Add the server port with 61239 value for the GDB port for the second core.
6. Set the reset value to “none” to avoid resetting the core while attaching to it.
7. For the flashing order requested by the debugger (CM7 config), select the first one to start as the latest one to be flashed, in this case you select CM4, then CM7.
8. For the second configuration (CM4) select the CM4 binary to load the symbols from it.

The order of debug launch will be:

1. Launch the CM7 debug
2. Launch the CM4 debug

5.3 How to debug a project with an external loader

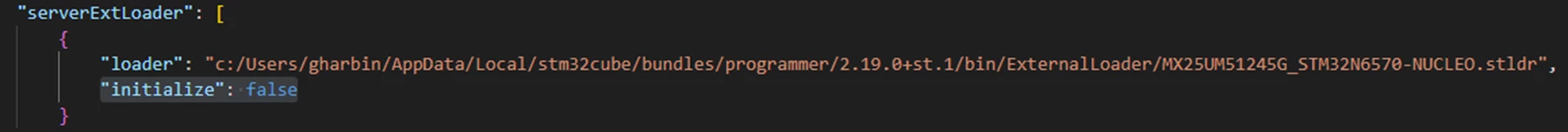

1. In your current launch.json, add a "serverExtLoader" parameter to configure the external loader.
2. Add "loader" in "serverExtLoader" and set the extloader path.
3. Keep "initialize" set to false.


5.4 Advanced debug launch configuration tips

• Attach without reset


  Reset mode “none”
  ImageAndSymbols: only SymbolFileName

• Reset mode control


  "serverReset": "Connect under reset",​

• TCP Console (semihosting)


  "serverSemihosting": {
   "enabled": true,
   "mode": "console",
   "port": "61260" },​

• liveWatch


  "liveWatch": {
   "enabled": true,
   "samplesPerSecond": "4" },​

• Prebuild command


  "preBuild": "${command:st-stm32-ide-debug-launch.build}",​

• RTOS view


  "serverRtos": {
   "enabled": true,
   "port":"60000",
   "driver": "freertos" }​

5. Support

For support, visit our VS Code product forums:
STM32CubeIDE for Visual Studio Code product forums.

Related links

STM32Cube for VS Code
