Peter BENSCH
Peter BENSCHBest answer
ST Technical Moderator
January 31, 2025

Ah, now everything is clear. The STEVAL-ISV002V1 is indeed obsolete, which is why there is no documentation for it from ST. Actually, this also includes the AN3095, which should therefore no longer be visible either. If you can't find it somewhere in the depths of the never-forgetting internet, nobody can help you.

Sorry I can't give a more pleasant answer.

Regards
/Peter

In order to give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
View in thread

6 replies

Andrew Neil
Andrew Neil
Super User
January 30, 2025

Did you check the 'CAD Resources' tab on the Product Page:

https://www.st.com/en/evaluation-tools/stdes-isv002v1.html#cad-resources

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
    JoshuaNgalandeAuthor
    Associate
    January 30, 2025

    Hi Andrew

    Thanks for that i actually didnt see that section.



    however i am still not able to find it there as the board status says obsolete is it possible that this is the reason i dont see any CAD resources ? .



    otherwise i didnt see that section.



    regards

    josh.

    Peter BENSCH
    Peter BENSCH
    ST Technical Moderator
    January 30, 2025

    When I open the website, nowhere do I find that it is obsolete - where did you see that?

    The fact is, however, that all boards whose designation begins with STDES are only design studies of the respective product division and cannot be purchased. However, you can download all the data from the CAD Resources tab (here BOM, schematics, ORCAD Design Files and Board Holder, reachable from the URL @Andrew Neil mentioned before), and use it to build your own board.

    Regards
    /Peter

    In order to give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
      JoshuaNgalandeAuthor
      Associate
      January 31, 2025

      Hello Peter

      Thanks for the response , Sorry for the confusion the board i am looking for is not starting with STDES

      it is STEVAL-ISV002V1  Application note AN3095

      Full file name .
      STEVAL-ISV002V1 3 kW grid-connected PV system,
      based on the STM32x

      link

      STEVAL-ISV002V1, STEVAL-ISV002V2 3 kW grid-connected PV system, based on the STM32F103xx



      Looking forward to your advise .



      regards

      josh.



      Andrew Neil
      Andrew Neil
      Super User
      January 31, 2025
      @JoshuaNgalande wrote:

      the board i am looking for is not starting with STDES

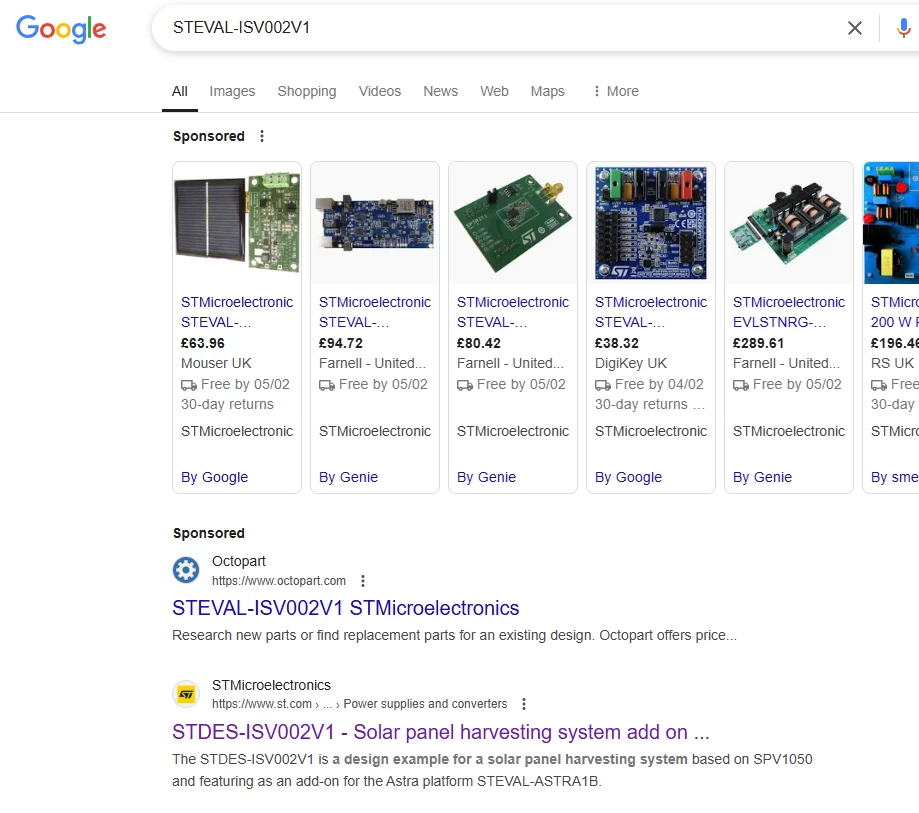

      Apologies -  I put "STEVAL-ISV002V1" into Google, and it gave me "STDES-ISV002V1"




      A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
      Peter BENSCH
      Peter BENSCHBest answer
      ST Technical Moderator
      January 31, 2025

      Ah, now everything is clear. The STEVAL-ISV002V1 is indeed obsolete, which is why there is no documentation for it from ST. Actually, this also includes the AN3095, which should therefore no longer be visible either. If you can't find it somewhere in the depths of the never-forgetting internet, nobody can help you.

      Sorry I can't give a more pleasant answer.

      Regards
      /Peter

      In order to give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
