Question

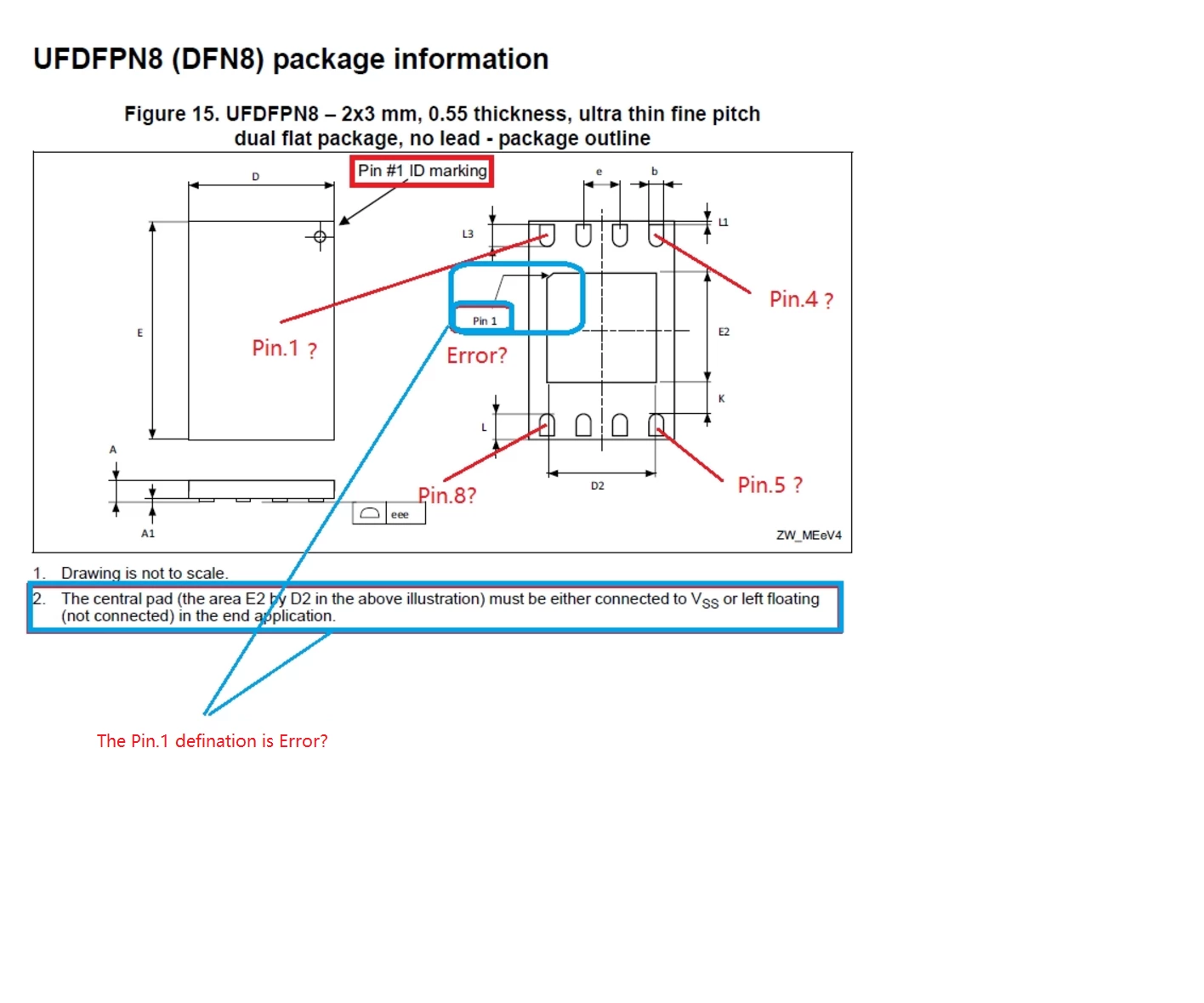

1.Are there a error for the Pin.1 defination of M24512 with UFDFPN8 (DFN8) package; 2.Pls confirm the UFDFPN8 (DFN8) Pin defination Ok or not as my mark in red(Pin.1/4/5/8).

This topic has been closed for replies.

3 replies

Pierre P.
ST Employee
Feb 10, 2020 9:52 AM UTC

Hello,

Of course the Pin 1 is defined as you mentioned in your red comment !

Thanks for the flag.

BR

Team EEPROM suPPort team.

YLi.2
YLi.2Author
Associate
Feb 10, 2020 11:40 AM UTC

Thanks for your response!

Other Pin define such as Pin.4/5.8 are all OK also as our mentioned?

Pierre P.
ST Employee
Feb 10, 2020 2:57 PM UTC

​Once you have pin 1 identification, you have to follow 8 pin package connections ( figure 2 in datasheet).

==> I do confirm pin 4/5/8 as you described.

BR

 Team EEPROM suPPort team.
