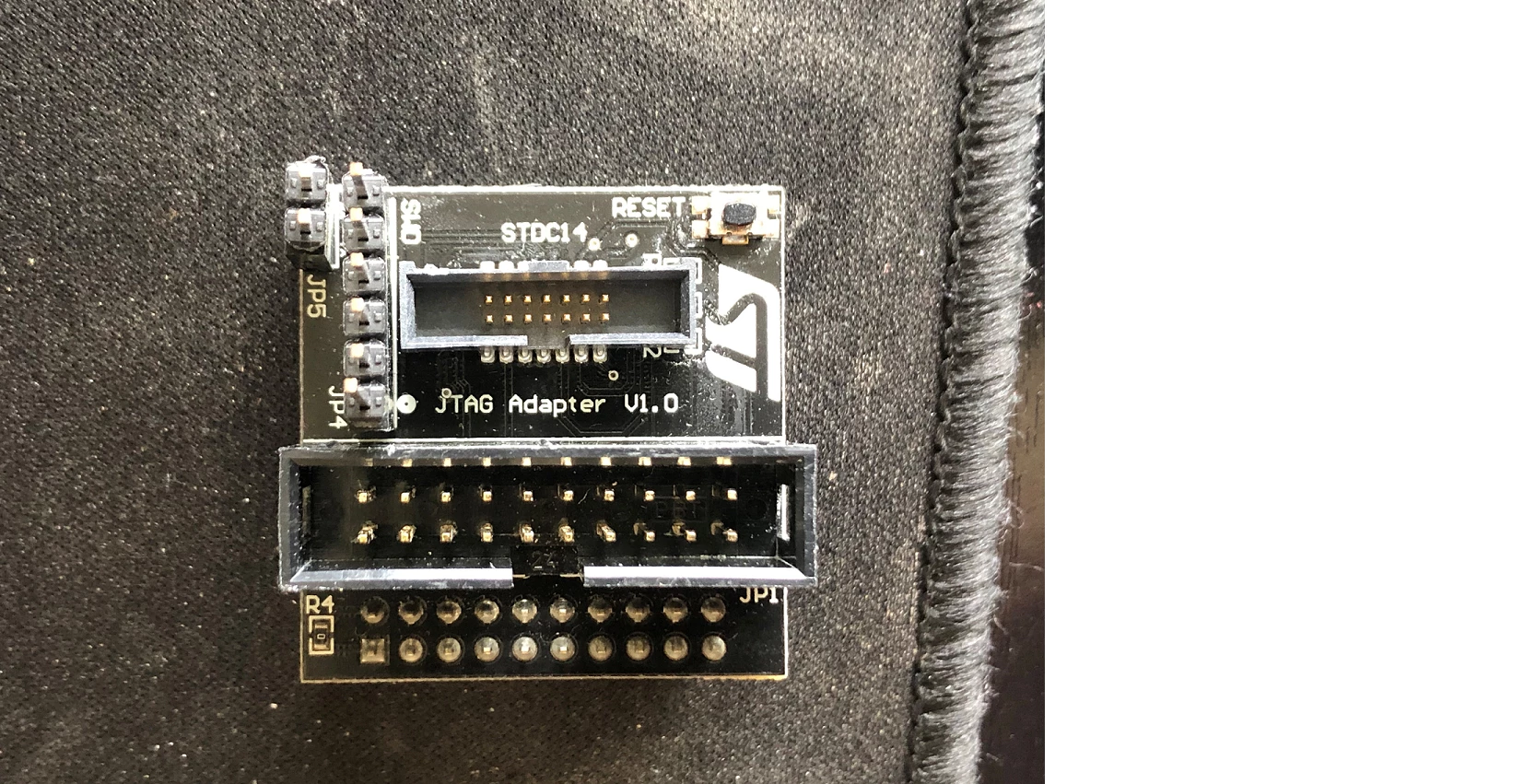

Kindly provide the schematic for this board

1 reply
792 views

This topic has been closed for replies.

Eleon BORLINIBest answer

ST Employee

Hi @Snara.2 ,

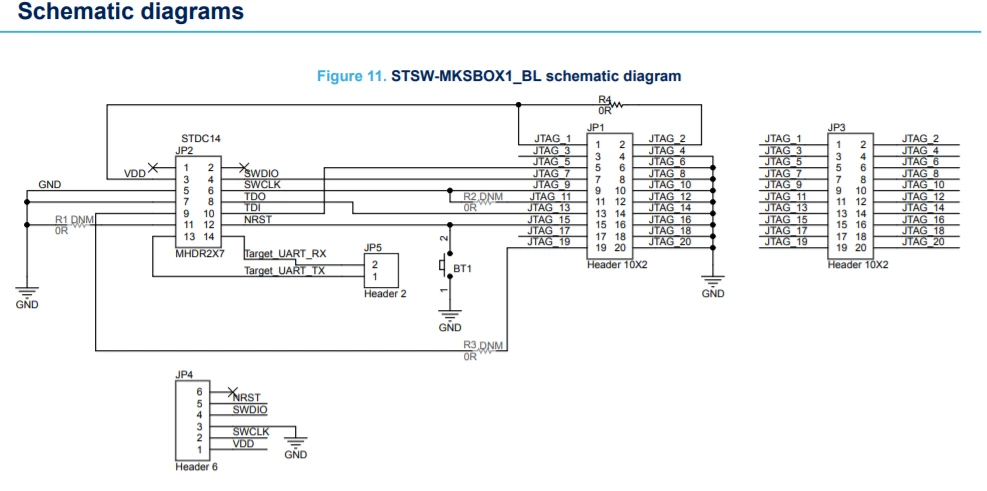

You can find the schematic of this JTAG adapter in this document, p.13, the Data brief of the STSW-MKSBOX1_BL.

If my reply answered your question, please click on Select as Best at the bottom of this post. This will help other users with the same issue to find the answer faster.

-Eleon
