Hi i want to use SPWF01SA wifi module, but i'm confused about connections.

 I want to control SPWF01S with another mcu and in my schematic i've connected only rx,tx, vcc and gnd also one connector like jtag. But i did not understand how to program module ? My jtag connections right ?  In SPWF01SA with nucleo board schematics, there is a connector like a jtag. (Below

en.x-nucleo-idw01m1_schematic.pdf

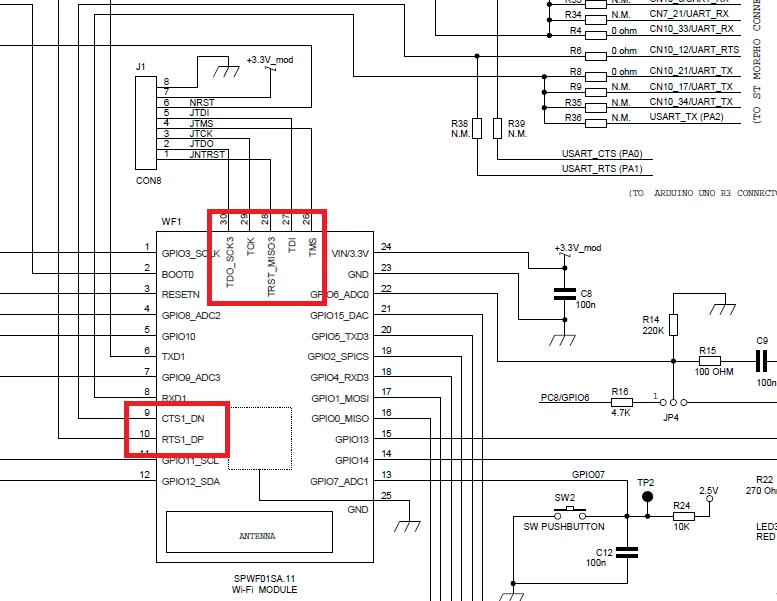

) I need help about connections with my mcu and also RTS and CTS pins. I write details below pictures. My design is

SPWF_wifi.PDF.

  I'm sure that, there are forgotten connections.

With warmest regards.

#module #spwf01sa #wifi

[waclawek.jan]

Posted on February 07, 2017 at 01:07

You may want to ask this question in the Interface and Connectivity IC Forum.

JW

[Gerardo GALLUCCI]

Posted on February 16, 2017 at 10:21

There is another post called 'About SPWF01SA connection'
