Active tampering event as a wakeup source in Standby mode

leonahi
Associate

Hello,



Can you please share an example code where active tampering is enabled in Standby mode and tamper event (disconnect loop) is used to wake up the MCU.

I would like to know how we can configure the TAMP as a wakeup source during Standby.

If you can show configuration in terms of STM HAL driver that would be great. Let me know if you need more context.



Kind Regards,

2 REPLIES 2
OOUAD
ST Employee

Hello leonahi,

You can refer to the example in STM32Cube_FW_WBA for tamper initialization at:
STM32Cube_FW_WBA_V1.7.0\Projects\STM32WBA55G-DK1\Examples_LL\RTC\RTC_Tamper_Init

You also need to add the tamper wakeup source configuration and the standby mode entry function as follows:

/* USER CODE BEGIN 2 */

/* @brief Enable the wake up line functionality. PWR_WAKEUP_PIN8_HIGH_3 < TAMP : Wakeup pin 8 (high polarity) */
HAL_PWR_EnableWakeUpPin(PWR_WAKEUP_PIN8_HIGH_3)
/* @brief Enter the whole system to Standby mode.*/
HAL_PWR_EnterSTANDBYMode();
/* USER CODE END 2 */



BRs

Thanks for the answer.

One follow-up question:

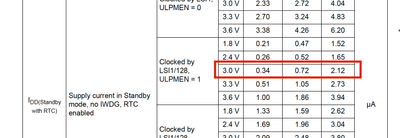

I enabled two active tampering loops (TAMP_IN1 - TAMP_OUT5 and TAMP_IN6 - TAMP_OUT4) in standby and the measured current is around ~0.35uA, which is something similar to what is mentioned in datasheet for "standby with RTC".

I would like to know whether this behavior is expected when active tamper is enabled? Since TAMP is part of the RTC, I understand that the full RTC module is enabled.

Does this also depend on how many active tamper loops are enabled because I can see similar current irrespective of one or two loops are enabled?


Thanks in advance.
