Contradiction in Reference Manual RM0394

  • August 31, 2021
  • 6 replies
  • 1851 views

There is an inconsistency in RTC shadow register update frequency description. Some places in text mentions that shadow register update happens once every RTCCLK period:

34.3.5, 36.3.4: "Every RTCCLK periods, the current calendar value is copied into the shadow registers..."

34.3.10, 36.3.8: "The copy is performed every RTCCLK cycle."

And other place say that it actually happens every other RTCCLK cycle:

34.6.7, 36.6.3: "Calendar values (when reading from RTC_SSR, RTC_TR, and RTC_DR) are taken from the shadow registers, which are updated once every two RTCCLK cycles."

I assume that "every two RTCCLK cycles" is correct, because some other Reference Manuals state this consistently.

This topic has been closed for replies.
Best answer by Imen.D

Hello @Stepan Martinek​ and welcome to the Community :)

The shadow registers are updated every ck_rtc cycle on RTC2_v2_0 and all versions after that.

I think it was "every two cycles" for v1.

So, "every two RTCCLK cycles" is wrong and should be “every RTCCLK cycle�?.

Hope this answer your question.

When your question is answered, please close this topic by choosing Select as Best.

Imen

6 replies

Imen.DBest answer
ST Technical Moderator
September 27, 2021

Hello @Stepan Martinek​ and welcome to the Community :)

The shadow registers are updated every ck_rtc cycle on RTC2_v2_0 and all versions after that.

I think it was "every two cycles" for v1.

So, "every two RTCCLK cycles" is wrong and should be “every RTCCLK cycle�?.

Hope this answer your question.

When your question is answered, please close this topic by choosing Select as Best.

Imen

In order to give better visibility on the answered topics, please click on 'Best answer' on the reply which solved your issue or answered your question. Thanks
Stepan Martinek
Associate II
September 29, 2021

Hello and thank you for clarification.

waclawek.jan
Super User
September 27, 2021

Hi Imen,

> So, "every two RTCCLK cycles" is wrong and should be “every RTCCLK cycle�?.

This means to fix virtually every STM32 RM, except RM0008, isn't it?

And also AN4759


Also, AN4759 should mention in this very chapter the RTC v2 lock bug.

Jan

@Imen DAHMEN​

ST Technical Moderator
September 30, 2021

Thanks @[waclawek.jan]​ for your feedback.

I have escalated this issue to the appropriate Owner for further check all impacted docs and take the action for correction.

Imen

In order to give better visibility on the answered topics, please click on 'Best answer' on the reply which solved your issue or answered your question. Thanks
waclawek.jan
Super User
September 30, 2021

Thanks, Imen!

Jan

waclawek.jan
Super User
February 12, 2024

Hi @Imen.D ,

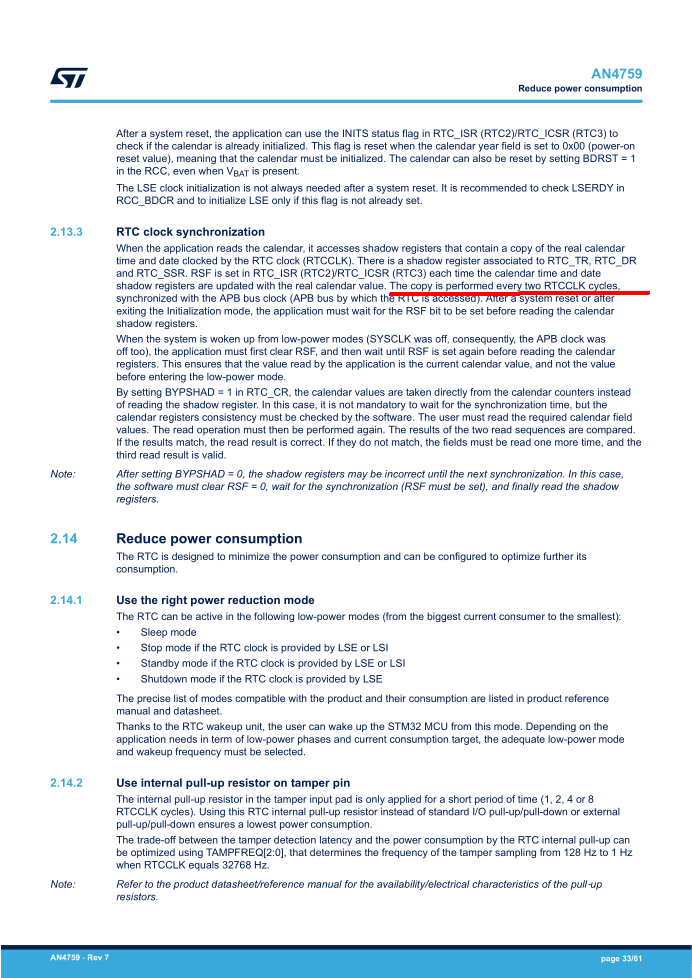

AN4759 has seen rev.8 at 08-Nov-2022, yet the line in question hasn't been corrected.

JW
