Discuss STM32 solutions for motor control, including PID tuning, sensorless operation, ADC noise, custom algorithms, and more.
Dear MCSDK users, The full MCSDK documentation is embedded in the Motor Control Workbench tool. Refer to Workbench tool > About > Documentations > Documentation.This document provides: Introduction: Includes startup guide links for MCSDK, HSO featu...
Dear MCSDK users, MCSDK version 6.4.0 is now available: Download It here. This version of the new Motor Control SDK 6 series (X-CUBE-MCDSK) provides mainly FOC and 6Step improvements, here are the main changes for this version: Motor Control Features...
The documentation of the Board descriptions format is now available on Motor Control Boards Description Wiki page, this documentation is compatible with MCSDK versions from 6.1.2. Board Descriptions are used by the ST motor-control workbench to enabl...
In order to have a quick response to your forum posts, the best way to ask the question is:- Give the version of the MCSDK used. - Say if the problem concerns a tool (MC Workbench, Motor Pilot, Motor Profiler, etc...) - Provide picture of tools inter...
Am using in STM32G030F6P6 controller. I use DRV10983 driver IC to control BLDC fan motor. I am new to this driver IC. Can anyone help me know to How to use this DRV10983 Driver IC and communicate with STM32G030F6P6?I have using code generate for Cube...

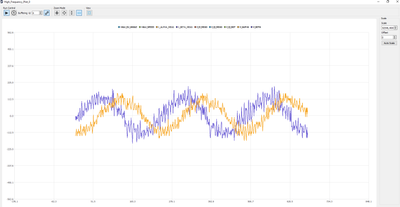

I want to understand the current sensing that is done in B-G431B-ESC1 kit. I do not understand the purpose of IN_VOPAMP3 connected to ADC2The opamp3 can be connected to ADC1 and ADC2 as shown in the figure? The software configuration of opamp3hopamp3...
I am getting the fault of MC_DURATION after running for few seconds in my customized board but software is same as B-G431B-ESC1. I am not sure why this error is happening, any advise? I have changed the REGULATION_EXECUTION_RATE to 2 from 1 assuming ...
Hi all,I am working on BLDC motor control using Hall sensors. At the moment, the motor seems to be running fine, however, I have noticed something strange in one of the sequences (this can be seen in the attached image taken from an oscilloscope). Wh...
I can easily create 3 PWM signals with 120 degrees of phase shift by creating a Master/Slave Trigger configuration. However, for the FOC algorithm, I need to shift all the signals together during operation. How can I achieve this?Both STM32CubeIDE an...
I am using the software of b-g431b-esc1 and the driver used in the board as per schematics is in my board the micro is RB series but the problem is with the Mosfet driver which has an active low signal, IR2108What changes do i need to make in the sof...

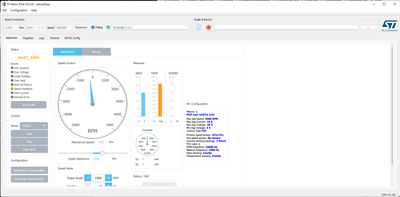

I'm trying to use the Motor Profiler software through my Motor Controller SDSK 6.1.1. When I launch the profiler, I Select my boards - Nucleo-F302R8 and X-Nucleo-IHM07M1 3Sh. Then I set the motor parameters to match my motor Bull Running BR2804. When...

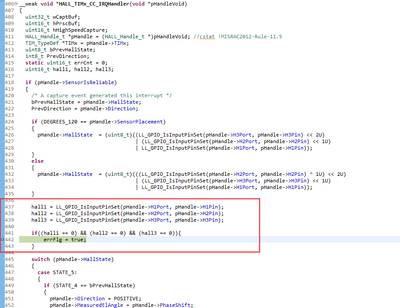

Devkit: (B-G431B-ESC1)Motor: (Pole pair = 3, (6 total magnets))Hall Sensor: Honeywell SS41F, 40 mechanical degree placement and 120 electrical (odd mechanical placement due to 3 pole pair)Software: MC SDK V6.I am trying to use 6-step sensored control...
2022-05-20 17:13:48,707 DEBUG [LineInfo_to_exitCode.log_LineInfo] 2022-05-20 17:13:48,706 [INFO] DependencyParser:915 - This component is not compatible with the current MCU : [1617735864348, 1617735864350, 1617735864358]2022-05-20 17:13:48,707 DEBUG...

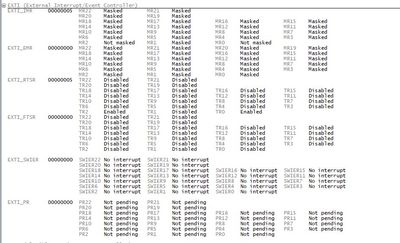

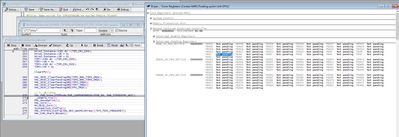

Hi all,I am new to motor control, and I am currently working with the BLDC motor driver board STEVAL-SPIN3201 (based on the STSPIN32F0). I am trying to generate the corresponding PWM signals to drive a BLDC motor. Although the low side of the bridge ...
