I can easily create 3 PWM signals with 120 degrees of phase shift by creating a Master/Slave Trigger configuration. However, for the FOC algorithm, I need to shift all the signals together during operation. How can I achieve this?Both STM32CubeIDE an...
I am using the software of b-g431b-esc1 and the driver used in the board as per schematics is in my board the micro is RB series but the problem is with the Mosfet driver which has an active low signal, IR2108What changes do i need to make in the sof...

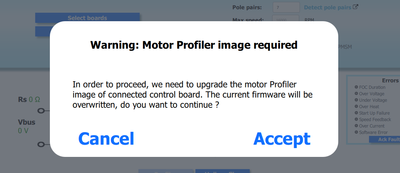

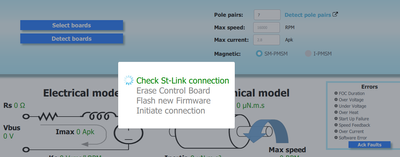

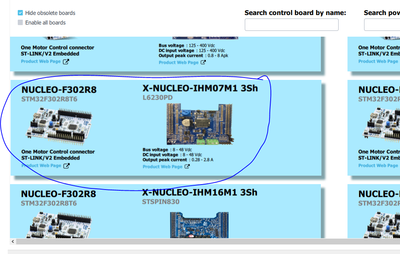

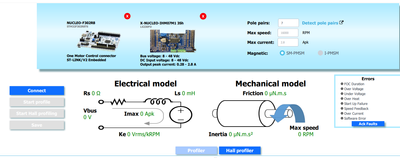

I'm trying to use the Motor Profiler software through my Motor Controller SDSK 6.1.1. When I launch the profiler, I Select my boards - Nucleo-F302R8 and X-Nucleo-IHM07M1 3Sh. Then I set the motor parameters to match my motor Bull Running BR2804. When...

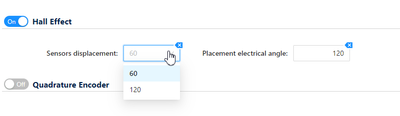

Devkit: (B-G431B-ESC1)Motor: (Pole pair = 3, (6 total magnets))Hall Sensor: Honeywell SS41F, 40 mechanical degree placement and 120 electrical (odd mechanical placement due to 3 pole pair)Software: MC SDK V6.I am trying to use 6-step sensored control...
2022-05-20 17:13:48,707 DEBUG [LineInfo_to_exitCode.log_LineInfo] 2022-05-20 17:13:48,706 [INFO] DependencyParser:915 - This component is not compatible with the current MCU : [1617735864348, 1617735864350, 1617735864358]2022-05-20 17:13:48,707 DEBUG...
Hi all,I am new to motor control, and I am currently working with the BLDC motor driver board STEVAL-SPIN3201 (based on the STSPIN32F0). I am trying to generate the corresponding PWM signals to drive a BLDC motor. Although the low side of the bridge ...
According to AN4144, page 14/28, the coefficient 'ke' is measured by turning the stepper and measure the phase voltage with a oscilloscope. For the coefficient 'ke' in V/Hz, which voltage normation should be used:Peak-to Peak, Peak or RMS?.
I'm building a project around the B-G431B-ESC1 board, that claims to support hall sensored 6-step control, but in motor bench there are no example files for this (only sensorless electric speed control files). I know you are supposed to generate file...
I want to add my own board, but there is no documentation how to add.
I have a driver board with 2 inline current sensors (ICS).But I cannot find a way to configure the current sensing with ICS option in MCSDK 6.1.1.Please support on how to configure this or provide a JSON file for the driver board with ICS option.Many...
