Dear MCSDK users, The full MCSDK documentation is embedded in the Motor Control Workbench tool. Refer to Workbench tool > About > Documentations > Documentation.This document provides: Introduction: Includes startup guide links for MCSDK, HSO featu...
Dear MCSDK users, MCSDK version 6.4.0 is now available: Download It here. This version of the new Motor Control SDK 6 series (X-CUBE-MCDSK) provides mainly FOC and 6Step improvements, here are the main changes for this version: Motor Control Features...
The documentation of the Board descriptions format is now available on Motor Control Boards Description Wiki page, this documentation is compatible with MCSDK versions from 6.1.2. Board Descriptions are used by the ST motor-control workbench to enabl...
In order to have a quick response to your forum posts, the best way to ask the question is:- Give the version of the MCSDK used. - Say if the problem concerns a tool (MC Workbench, Motor Pilot, Motor Profiler, etc...) - Provide picture of tools inter...
Hi Zied,After waiting patiently for MCSDK 6.2.0, I was overjoyed when it was finally released.However, I could not get the motor profiler to communicate with my board. It seems to require a proper firmware to be downloaded before it can run. It does ...
Hi, I have Nucleo L476RG with IHM04A1 shield. Also i have JK42HS34-0404 stepper motor. My question is how i can connect this and run? I read a lot of documentation, but i cant run it. Any help will be appreciated

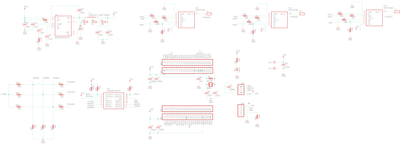

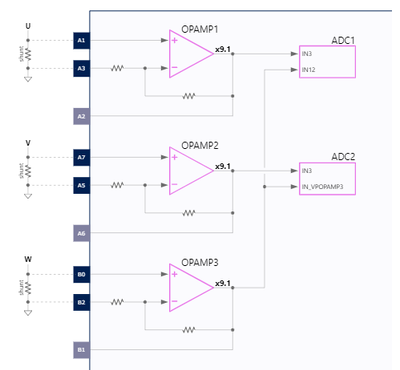

Picture 1 SDK 6picture 2 SDK 5.4.8 Hello,I want to drive a BLDC motor via IHM16M1 with the newly purchased nucleo-stm32f103rb board. But the control cart is not here. Old version SDKs are also available as XML files(f103rb). SDK 6 introduced the .jso...

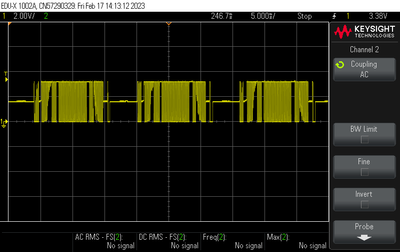

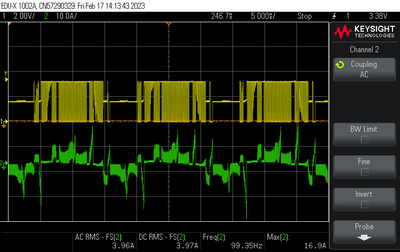

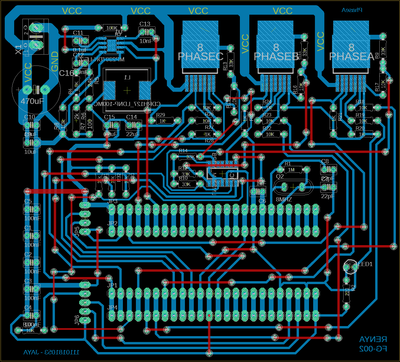

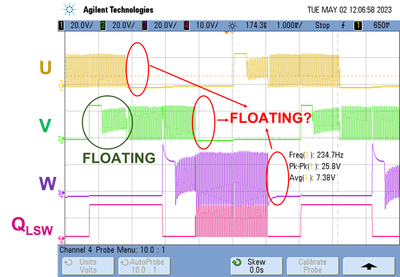

Hello I am designing a controller that will drive a 3 phase BLDC 0.5kW motor. I choose STM32G474VET3 to generate the signaling with external gate driver and some beefy MOSFETs for that. The MCU has advanced timer controller, and for my applicatio...

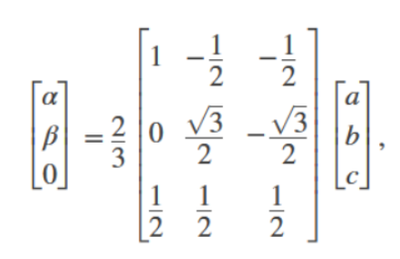

In the __weak int16_t STC_CalcTorqueReference(SpeednTorqCtrl_Handle_t *pHandle) function The original ST code contains the below line code.hMeasuredSpeed = SPD_GetAvrgMecSpeedUnit(pHandle->SPD);hError = hTargetSpeed - hMeasuredSpeed;hTorqueReference ...
Hi， I'm working with an Maxon 3-phase 1-pole BLDC motor, following is it's motor data table or attached file. the colum with red rectangle is the motor type we're now dealing with.I wondering how can we get the B-EMF constant in the MC workbench elec...

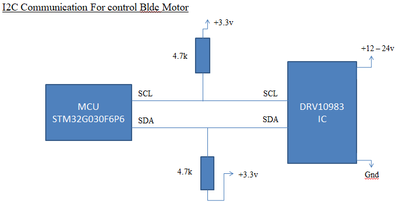

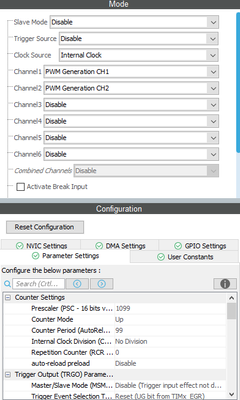

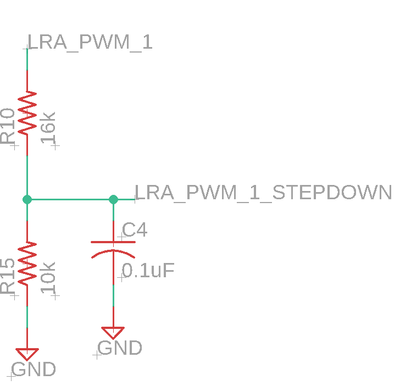

Hello, Am using in stm32g030f6p6 controller. I just control the bldc fan motor with DRV10983 driver IC. so i new to this driver IC. How to communicate with stm32g030f6p6 to DRV10983 Driver IC with motor. I have using code generate for CubeMx s...

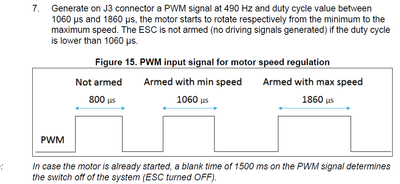

I would like to have precise, slow motion control of a BLDC motor from a hoverboard. This 1 minute video shows it well: https://www.youtube.com/watch?v=JMXz5tzpq7UWould a "STEVAL-SPIN3202" do this?Many thanksMarc

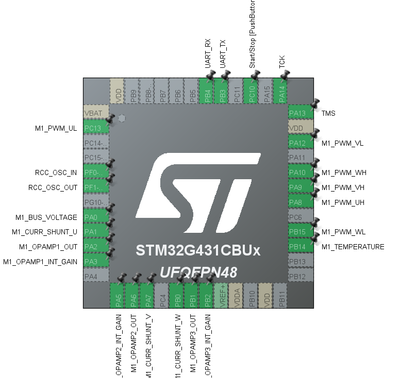

Hi,these days you released STM32 Motor Control Software Development Kit (MCSDK) 6.1 which offers the possibility to create custom boards. The sample boards are very complex and the code is very long. I'm looking for documentation how to write a custo...
Is there any user guide regarding custom board creation in MC workbench 6.1.0? I can start from the X-NUCLEO-IHM05M1 board, but I have to change the HALL sensor input from TIM2 to TIM3.
