DMA Circular mode misalignment

[g_timp]

Hi everyone!

I'm trying to figure out what's wrong with my SPI Peripheral continous transmitting/receiving via DMA in Circular Mode. I think I have coded a pretty basic "Hello, World" for working with DMA, I've just generated code from .ioc file and then added a simple logic. This is my main.c:

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2025 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "dma.h"
#include "spi.h"
#include "usart.h"
#include "usb_otg.h"
#include "gpio.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */

/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
#define SPI3_BUFFER_SIZE 2

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */
volatile uint8_t spi3_tx_buffer[SPI3_BUFFER_SIZE] = {0};
volatile uint8_t spi3_rx_buffer[SPI3_BUFFER_SIZE] = {0};

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */
void SPI3_Start_Comm(void);

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{

  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_DMA_Init();
  MX_USART3_UART_Init();
  MX_USB_OTG_FS_PCD_Init();
  MX_SPI3_Init();
  /* USER CODE BEGIN 2 */

  SPI3_Start_Comm();

  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Configure LSE Drive Capability
  */
  HAL_PWR_EnableBkUpAccess();

  /** Configure the main internal regulator output voltage
  */
  __HAL_RCC_PWR_CLK_ENABLE();
  __HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_BYPASS;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLM = 4;
  RCC_OscInitStruct.PLL.PLLN = 216;
  RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV2;
  RCC_OscInitStruct.PLL.PLLQ = 9;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }

  /** Activate the Over-Drive mode
  */
  if (HAL_PWREx_EnableOverDrive() != HAL_OK)
  {
    Error_Handler();
  }

  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV4;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV2;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_7) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE BEGIN 4 */

/**
 * @brief This function starts SPI Communication for Peripheral device
 * @retval None
 */
void SPI3_Start_Comm(void)
{
	HAL_SPI_TransmitReceive_DMA(&hspi3,(uint8_t*)spi3_tx_buffer,
			(uint8_t*)spi3_rx_buffer,SPI3_BUFFER_SIZE);
}

void HAL_SPI_TxRxCpltCallback(SPI_HandleTypeDef *hspi)
{

	if(hspi->Instance == SPI3)
	{
		spi3_tx_buffer[0] = spi3_rx_buffer[0];
		spi3_tx_buffer[1] = spi3_rx_buffer[1];
	}

}

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  *   file: pointer to the source file name
  *   line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

As you can see, I just start communication in SPI3_Start_Comm() and then in HAL_SPI_TxRxCpltCallback I prepare the bytes received at N-time to echo back at N+1-time.

What I get is the peripheral echoing back bytes at N+x-time, after three or four garbage results at first. If I print results from controller point of view this is what I get:

    COPI CIPO
0: 0000 XXXX (garbage)
1: 0000 XXXX (garbage)
2: 0800 XXXX (garbage)
3: 0800 XXXX (garbage)
4: 1000 0000 (N+3 echo back - it should be N+1 or 0800). Missing N = 0 echo
5: 1000 0800 (and so on...)
6: 1800 0800
7: 1800 1000
8: 2000 1000
9: 2000 1800
10: 2800 1800
11: 2800 2000
12: 3000 2000
13: 3000 2800
14: 3800 2800
15: 3800 3000
16: 0000 3000
17: 0000 3800
18: 0800 3800
19: 0800 0000
20: 1000 0000
...

Peripheral device is STM32F722ZE. Controller is a black box.

Here's my spi.c and dma.c files generated from .ioc:

spi.c:

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file    spi.c
  * @brief   This file provides code for the configuration
  *          of the SPI instances.
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2025 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "spi.h"

/* USER CODE BEGIN 0 */

/* USER CODE END 0 */

SPI_HandleTypeDef hspi3;
DMA_HandleTypeDef hdma_spi3_rx;
DMA_HandleTypeDef hdma_spi3_tx;

/* SPI3 init function */
void MX_SPI3_Init(void)
{

  /* USER CODE BEGIN SPI3_Init 0 */

  /* USER CODE END SPI3_Init 0 */

  /* USER CODE BEGIN SPI3_Init 1 */

  /* USER CODE END SPI3_Init 1 */
  hspi3.Instance = SPI3;
  hspi3.Init.Mode = SPI_MODE_SLAVE;
  hspi3.Init.Direction = SPI_DIRECTION_2LINES;
  hspi3.Init.DataSize = SPI_DATASIZE_8BIT;
  hspi3.Init.CLKPolarity = SPI_POLARITY_HIGH;
  hspi3.Init.CLKPhase = SPI_PHASE_2EDGE;
  hspi3.Init.NSS = SPI_NSS_HARD_INPUT;
  hspi3.Init.FirstBit = SPI_FIRSTBIT_MSB;
  hspi3.Init.TIMode = SPI_TIMODE_DISABLE;
  hspi3.Init.CRCCalculation = SPI_CRCCALCULATION_DISABLE;
  hspi3.Init.CRCPolynomial = 7;
  hspi3.Init.CRCLength = SPI_CRC_LENGTH_DATASIZE;
  hspi3.Init.NSSPMode = SPI_NSS_PULSE_DISABLE;
  if (HAL_SPI_Init(&hspi3) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN SPI3_Init 2 */

  /* USER CODE END SPI3_Init 2 */

}

void HAL_SPI_MspInit(SPI_HandleTypeDef* spiHandle)
{

  GPIO_InitTypeDef GPIO_InitStruct = {0};
  if(spiHandle->Instance==SPI3)
  {
  /* USER CODE BEGIN SPI3_MspInit 0 */

  /* USER CODE END SPI3_MspInit 0 */
    /* SPI3 clock enable */
    __HAL_RCC_SPI3_CLK_ENABLE();

    __HAL_RCC_GPIOA_CLK_ENABLE();
    __HAL_RCC_GPIOB_CLK_ENABLE();
    /**SPI3 GPIO Configuration
    PA4     ------> SPI3_NSS
    PB3     ------> SPI3_SCK
    PB4     ------> SPI3_MISO
    PB5     ------> SPI3_MOSI
    */
    GPIO_InitStruct.Pin = GPIO_PIN_4;
    GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
    GPIO_InitStruct.Alternate = GPIO_AF6_SPI3;
    HAL_GPIO_Init(GPIOA, &GPIO_InitStruct);

    GPIO_InitStruct.Pin = GPIO_PIN_3|GPIO_PIN_4|GPIO_PIN_5;
    GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
    GPIO_InitStruct.Alternate = GPIO_AF6_SPI3;
    HAL_GPIO_Init(GPIOB, &GPIO_InitStruct);

    /* SPI3 DMA Init */
    /* SPI3_RX Init */
    hdma_spi3_rx.Instance = DMA1_Stream0;
    hdma_spi3_rx.Init.Channel = DMA_CHANNEL_0;
    hdma_spi3_rx.Init.Direction = DMA_PERIPH_TO_MEMORY;
    hdma_spi3_rx.Init.PeriphInc = DMA_PINC_DISABLE;
    hdma_spi3_rx.Init.MemInc = DMA_MINC_ENABLE;
    hdma_spi3_rx.Init.PeriphDataAlignment = DMA_PDATAALIGN_BYTE;
    hdma_spi3_rx.Init.MemDataAlignment = DMA_MDATAALIGN_BYTE;
    hdma_spi3_rx.Init.Mode = DMA_CIRCULAR;
    hdma_spi3_rx.Init.Priority = DMA_PRIORITY_VERY_HIGH;
    hdma_spi3_rx.Init.FIFOMode = DMA_FIFOMODE_DISABLE;
    if (HAL_DMA_Init(&hdma_spi3_rx) != HAL_OK)
    {
      Error_Handler();
    }

    __HAL_LINKDMA(spiHandle,hdmarx,hdma_spi3_rx);

    /* SPI3_TX Init */
    hdma_spi3_tx.Instance = DMA1_Stream5;
    hdma_spi3_tx.Init.Channel = DMA_CHANNEL_0;
    hdma_spi3_tx.Init.Direction = DMA_MEMORY_TO_PERIPH;
    hdma_spi3_tx.Init.PeriphInc = DMA_PINC_DISABLE;
    hdma_spi3_tx.Init.MemInc = DMA_MINC_ENABLE;
    hdma_spi3_tx.Init.PeriphDataAlignment = DMA_PDATAALIGN_BYTE;
    hdma_spi3_tx.Init.MemDataAlignment = DMA_MDATAALIGN_BYTE;
    hdma_spi3_tx.Init.Mode = DMA_CIRCULAR;
    hdma_spi3_tx.Init.Priority = DMA_PRIORITY_VERY_HIGH;
    hdma_spi3_tx.Init.FIFOMode = DMA_FIFOMODE_DISABLE;
    if (HAL_DMA_Init(&hdma_spi3_tx) != HAL_OK)
    {
      Error_Handler();
    }

    __HAL_LINKDMA(spiHandle,hdmatx,hdma_spi3_tx);

    /* SPI3 interrupt Init */
    HAL_NVIC_SetPriority(SPI3_IRQn, 0, 0);
    HAL_NVIC_EnableIRQ(SPI3_IRQn);
  /* USER CODE BEGIN SPI3_MspInit 1 */

  /* USER CODE END SPI3_MspInit 1 */
  }
}

void HAL_SPI_MspDeInit(SPI_HandleTypeDef* spiHandle)
{

  if(spiHandle->Instance==SPI3)
  {
  /* USER CODE BEGIN SPI3_MspDeInit 0 */

  /* USER CODE END SPI3_MspDeInit 0 */
    /* Peripheral clock disable */
    __HAL_RCC_SPI3_CLK_DISABLE();

    /**SPI3 GPIO Configuration
    PA4     ------> SPI3_NSS
    PB3     ------> SPI3_SCK
    PB4     ------> SPI3_MISO
    PB5     ------> SPI3_MOSI
    */
    HAL_GPIO_DeInit(GPIOA, GPIO_PIN_4);

    HAL_GPIO_DeInit(GPIOB, GPIO_PIN_3|GPIO_PIN_4|GPIO_PIN_5);

    /* SPI3 DMA DeInit */
    HAL_DMA_DeInit(spiHandle->hdmarx);
    HAL_DMA_DeInit(spiHandle->hdmatx);

    /* SPI3 interrupt Deinit */
    HAL_NVIC_DisableIRQ(SPI3_IRQn);
  /* USER CODE BEGIN SPI3_MspDeInit 1 */

  /* USER CODE END SPI3_MspDeInit 1 */
  }
}

/* USER CODE BEGIN 1 */

/* USER CODE END 1 */

dma.c:

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file    dma.c
  * @brief   This file provides code for the configuration
  *          of all the requested memory to memory DMA transfers.
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2025 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */

/* Includes ------------------------------------------------------------------*/
#include "dma.h"

/* USER CODE BEGIN 0 */

/* USER CODE END 0 */

/*----------------------------------------------------------------------------*/
/* Configure DMA                                                              */
/*----------------------------------------------------------------------------*/

/* USER CODE BEGIN 1 */

/* USER CODE END 1 */

/**
  * Enable DMA controller clock
  */
void MX_DMA_Init(void)
{

  /* DMA controller clock enable */
  __HAL_RCC_DMA1_CLK_ENABLE();

  /* DMA interrupt init */
  /* DMA1_Stream0_IRQn interrupt configuration */
  HAL_NVIC_SetPriority(DMA1_Stream0_IRQn, 0, 0);
  HAL_NVIC_EnableIRQ(DMA1_Stream0_IRQn);
  /* DMA1_Stream1_IRQn interrupt configuration */
  HAL_NVIC_SetPriority(DMA1_Stream1_IRQn, 0, 0);
  HAL_NVIC_EnableIRQ(DMA1_Stream1_IRQn);
  /* DMA1_Stream3_IRQn interrupt configuration */
  HAL_NVIC_SetPriority(DMA1_Stream3_IRQn, 0, 0);
  HAL_NVIC_EnableIRQ(DMA1_Stream3_IRQn);
  /* DMA1_Stream5_IRQn interrupt configuration */
  HAL_NVIC_SetPriority(DMA1_Stream5_IRQn, 0, 0);
  HAL_NVIC_EnableIRQ(DMA1_Stream5_IRQn);

}

/* USER CODE BEGIN 2 */

/* USER CODE END 2 */

What am I missing?

Thanks to anyone who will try to help!

[g_timp]

Thanks JW, replace controller is not an option. I have tried to debug but that's not been really helpful and confused me a bit, to be honest. Sure thing I must study more these peripherals I want to use.

It still seems strange to me that with 4-bit datasize it kind of works, but with inverted endianness:

   COPI CIPO
0: 0065 6538
1: 0065 6538
2: 0865 6500
3: 0865 6508
4: 1065 6508
5: 1065 6510
6: 1865 6510
7: 1865 6518
8: 2065 6518
9: 2065 6520

Both controller and peripheral devices should be little-endian.

[waclawek.jan]

> replace controller is not an option

It is always an option, when you want to gain an understanding of the details, to use some of the lowcost devboards, such as a Nucleo.

JW

[Ozone]

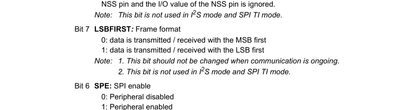

> Both controller and peripheral devices should be little-endian.

The SPI peripheral has no endianness.
You can configure it both ways.

[MasterT]

I read, that G4 & H7 have USART capable to run SPI mode and switch FIFO off. Same time usart has lower speed  compare to common spi, 12.5 - 21 MHz.

In one of my project, when I need internal adc binary code to be pushed over spi as fast as possible I used dual timer approach.

Tim-1 sets adc sampling and start tim-2 in OnePulse repetitive x4 mode , than tim-2 trigger spi master that  pushed "dummy" 3 bytes till 4-st right sample arrived. Tim-1 may generate phase shifted CS (NSS) that control external spi stream receiver to latch last byte only. Latency I get ~400 nsec at the best on G4, with spi 42 MHz

[g_timp]

Guys thank you but I feel we are totally going off the rail here.

JW: > It is always an option
It's not, if you're asked to develop a SPI Peripheral continuously receiving from a specific controller :)

Ozone: > You can configure it both ways.
Yes, I know, that was my point. Don't you consider strange that if I change configuration nothing happens?

MasterT: thanks but I was looking for a far simpler code for this purpose.

Let me reformulate my question: how would you program a SPI Peripheral for continuously receiving data from a black box controller and echoing data back, such as when Controller sends N+1 data Peripheral responds with N data?
Controller calls in a loop a function like TransmitReceive(spi_hdlr,txBuffer,rxBuffer,size), where buffers are of uint8_t type and size = 2, then a delay of a few microseconds.

[TDK]

> how would you program a SPI Peripheral for continuously receiving data from a black box controller and echoing data back, such as when Controller sends N+1 data Peripheral responds with N data?

1) Send a single byte of dummy data to seed the TXFIFO. Might need to be 2 bytes, but I think only one will work. DMA should be fast enough to turn around data within a single SPI clock.

2) Set up DMA to trigger on RXNE and transfer that data the TXFIFO.

Not a particularly useful setup in my opinion, but it will do what you asked--echoing bytes back as they are received. Byte N output is the same as received byte N - 1 (or N-2 if two bytes are needed).

[g_timp]

Thanks @TDK, I've tried but surely I am still missing something. This is how I have changed my SPI3_Start_Comm function:

void SPI3_Start_Comm(void)
{
	uint8_t dummy = 0xFF;
	HAL_SPI_Transmit(&hspi3, (uint8_t*)&dummy,1, HAL_MAX_DELAY);

	HAL_SPI_TransmitReceive_DMA(&hspi3,(uint8_t*)spi3_tx_buffer,
			(uint8_t*)spi3_rx_buffer,SPI3_BUFFER_SIZE);
}

spi.c data size is back to 8-bit:

/* SPI3 init function */
void MX_SPI3_Init(void)
{

  /* USER CODE BEGIN SPI3_Init 0 */

  /* USER CODE END SPI3_Init 0 */

  /* USER CODE BEGIN SPI3_Init 1 */

  /* USER CODE END SPI3_Init 1 */
  hspi3.Instance = SPI3;
  hspi3.Init.Mode = SPI_MODE_SLAVE;
  hspi3.Init.Direction = SPI_DIRECTION_2LINES;
  hspi3.Init.DataSize = SPI_DATASIZE_8BIT;
  hspi3.Init.CLKPolarity = SPI_POLARITY_HIGH;
  hspi3.Init.CLKPhase = SPI_PHASE_2EDGE;
  hspi3.Init.NSS = SPI_NSS_HARD_INPUT;
  hspi3.Init.FirstBit = SPI_FIRSTBIT_MSB;
  hspi3.Init.TIMode = SPI_TIMODE_DISABLE;
  hspi3.Init.CRCCalculation = SPI_CRCCALCULATION_DISABLE;
  hspi3.Init.CRCPolynomial = 7;
  hspi3.Init.CRCLength = SPI_CRC_LENGTH_DATASIZE;
  hspi3.Init.NSSPMode = SPI_NSS_PULSE_DISABLE;
  if (HAL_SPI_Init(&hspi3) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN SPI3_Init 2 */

  /* USER CODE END SPI3_Init 2 */

}

The only effect is that byte order is reversed, delay is still there:
   COPI CIPO
0: 0000 0030
1: 0000 0038
2: 0800 0038
3: 0800 0000
4: 1000 0008
5: 1000 0008
6: 1800 0010
7: 1800 0010
8: 2000 0018
9: 2000 0018
10: 2800 0020

I have tried with two dummy bytes, and byte order is not reversed.

> Not a particularly useful setup in my opinion
I don't get it, why it is not useful to you and what do you suggest?

[TDK]

HAL isn't going to be able to do this. HAL is set up to send and receive bytes in sync, and you want yours to be out of sync. You will need to write at least some of the driver yourself. HAL can initialize things.

If the SPI clock rate is abysmally slow, which I doubt, you could do this with HAL with the following loop:

uint8_t data[2] = {0};
HAL_SPI_TransmitReceive(&hspi3, &data, &data, 2, HAL_MAX_DELAY);

[g_timp]

@TDK > and you want yours to be out of sync

I don't understand why you're saying this, since the shift register SPI allows synchronous communication on COPI and CIPO lines, Peripheral must prepare data before. If just echoing back what is received on the COPI line, of course you will transmit on CIPO N-1 data, why you consider this out of sync?

[TDK]

The term "out of sync" is not the issue here. You can call it whatever you want. The point is it doesn't adhere to what HAL_SPI_TransmitReceive_DMA is doing so you'll need to address this.
