[SOLVED] --- Slidebar on STM32F746G-DISCO ----

[Ciuffoly]

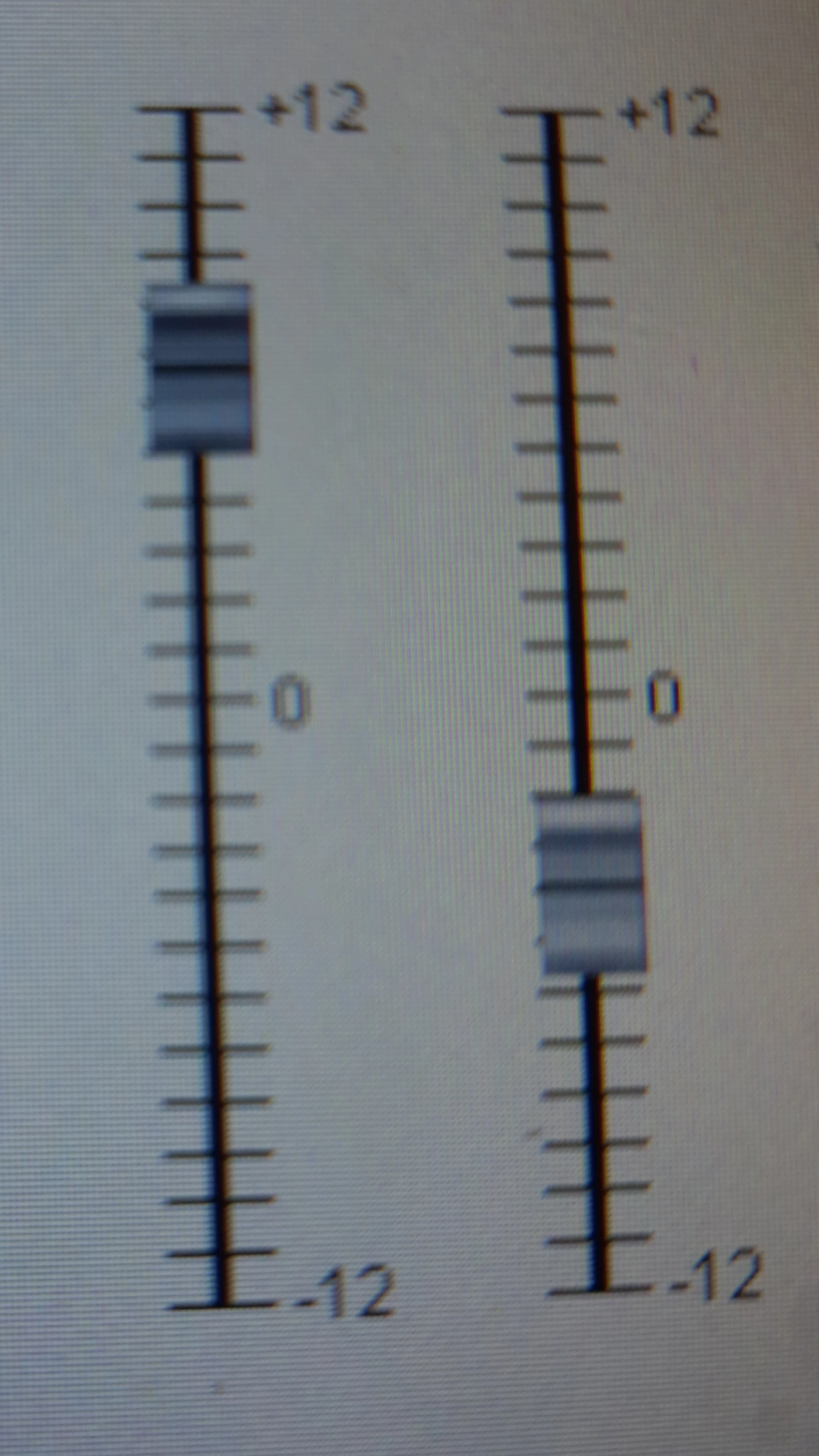

Here my solution to create a slidebar on this evaluation board, it should run also in other STM32 modules.

//######################################################################################
//# Slide bar
//######################################################################################
#define SLIDE_X (400)
#define SLIDE_Y (20)
#define EMPTY_Y (15)

typedef struct slidebar_tag_Struct {

	uint16_t slide_start_x; // to set
	uint16_t slide_start_y; // to set
	uint16_t slide_empty_y; // to set (diff from top image to top slide)

	uint16_t first; // to set to 1
	uint32_t width_slide; // to set to 0
	uint32_t height_slide; // to set to 0
	uint32_t width_cursor; // to set to 0
	uint32_t height_cursor; // to set to 0
	int prev_cursor_Ypos; // to set to 0

	float Ymin;
 float Ymax;

 int save_curr_x;
 int save_curr_y;

	uint16_t cursor_start_x;
	uint16_t cursor_end_x;
	uint16_t cursor_start_y;
	uint16_t cursor_end_y;

	uint32_t index;
	uint32_t bit_pixel;

	uint16_t curr_pos;

 uint32_t * save_area;
} slidebar_Struct;

slidebar_Struct slidestr1 = { SLIDE_X, SLIDE_Y, EMPTY_Y, 1, 0, 0, 0, 0, 0 };

slidebar_Struct slidestr2 = { SLIDE_X - 60, SLIDE_Y, EMPTY_Y, 1, 0, 0, 0, 0, 0 };

void BSP_LCD_CreateSlideBar(slidebar_Struct *, uint8_t *, uint8_t *, int, uint16_t);
> 2 parameter the pointer to the slibar image
> 3 parameter the pointer to the cursor image



void BSP_LCD_CreateSlideBar(slidebar_Struct * s, uint8_t * slide, uint8_t * cursor, int pos, uint16_t perc)
{
	//static uint16_t first = 1;

	uint16_t i, m, k;
	float Xcursor, Ycursor;

	if (s->first == 1)
	{
	 /* Read slide bitmap width */
		s->width_slide = *(uint16_t *) (slide + 18);
		s->width_slide |= (*(uint16_t *) (slide + 20)) << 16;

 	/* Read slide bitmap height */
		s->height_slide = *(uint16_t *) (slide + 22);
		s->height_slide |= (*(uint16_t *) (slide + 24)) << 16;

 	/* Read slide bitmap width */
		s->width_cursor = *(uint16_t *) (cursor + 18);
		s->width_cursor |= (*(uint16_t *) (cursor + 20)) << 16;

 	/* Read cursor bitmap height */
		s->height_cursor = *(uint16_t *) (cursor + 22);
		s->height_cursor |= (*(uint16_t *) (cursor + 24)) << 16;

		/* Get bitmap data address offset */
		s->index = cursor[10] + (cursor[11] << 8) + (cursor[12] << 16) + (cursor[13] << 24);

		/* Read bit/pixel */
		s->bit_pixel = cursor[28] + (cursor[29] << 8);

		/* Calculate the pixel range of cursor */
		s->Ymin = s->slide_start_y + s->slide_empty_y - (s->height_cursor / 2);
		s->Ymax = s->Ymin + (s->height_slide - (2 * s->slide_empty_y));

		/* Drar slidebar without cursor */
 BSP_LCD_DrawBitmap(s->slide_start_x, s->slide_start_y, slide);

 s->first = 0;
	}
	else
	{
		/* Restore original area under the cursor */
		for ( i = k = 0; i < s->height_cursor; i++)
		{
		 	for ( m = 0; m < s->width_cursor; m++, k++)
		 	{
		 		BSP_LCD_DrawPixel(s->save_curr_x + m, s->save_curr_y + i, s->save_area[k]);
		 	}
		}
		/* free original save area */
		free(s->save_area);
	}

	/* Calculate the new cursor position */
	Xcursor = s->slide_start_x + (s->width_slide / 2) - (s->width_cursor / 2);

	/* If has been specified a percentage */
	if (pos == 0 && perc <= 100)
	{
 Ycursor = s->slide_start_y + s->slide_empty_y - (s->height_cursor/2);

 Ycursor += (perc / 100.0) * (s->height_slide - (2 * s->slide_empty_y));
	}
	else /* If has been specified a pixel step */
 {
	 Ycursor = (uint16_t)(s->save_curr_y + pos);

	 if (Ycursor < s->Ymin || Ycursor > s->Ymax)
	 	Ycursor = (uint16_t)(s->save_curr_y);

	 uint16_t rel1 = (uint16_t)Ycursor - s->slide_start_y - s->slide_empty_y + (s->height_cursor/2);

	 s->curr_pos = (uint16_t)(100.0 * (rel1 / (float)(s->Ymax - s->Ymin)));

	 //LCD_LOG_State("curr %d\%", s->curr_pos);
 }

	/* Save the area under the new cursor */
 s->save_curr_x = (int)Xcursor;
 s->save_curr_y = (int)Ycursor;

 s->save_area = calloc(s->height_cursor * s->width_cursor, sizeof(uint32_t));

 if (s->save_area == NULL)
 {
 	LCD_LOG_State("BSP_LCD_CreateSlideBar no memory");
 	return;
 }

 for ( i = k = 0; i < s->height_cursor; i++)
 {
 	for ( m = 0; m < s->width_cursor; m++, k++)
 	{
 		s->save_area[k] = BSP_LCD_ReadPixel((uint16_t)Xcursor + m, (uint16_t)Ycursor + i);
 	}
 }

 /* Draw the cursor in the new position */
 BSP_LCD_DrawBitmap((uint16_t)Xcursor, (uint16_t)Ycursor, cursor);

#define ENLANGE_TOUCH_AREA (20)

 /* Calculate the touchscreen area for the cursor */
 s->cursor_start_x = (uint16_t)Xcursor - ENLANGE_TOUCH_AREA;
 s->cursor_end_x = (uint16_t)Xcursor + s->width_cursor + ENLANGE_TOUCH_AREA;
 s->cursor_start_y = (uint16_t)Ycursor - ENLANGE_TOUCH_AREA;
 s->cursor_end_y = (uint16_t)Ycursor + s->height_cursor + ENLANGE_TOUCH_AREA;
}





void BSP_Pointer_Update(void)
{
	static TS_StateTypeDef prev_state; /*previous touch state from the touch sensor used from BSP package*/
	TS_StateTypeDef ts; /*actual touch state from the touch sensor used from BSP package*/
	int xDiff, yDiff; /*difference in postitions between touch states*/

	BSP_TS_GetState(&ts);

	xDiff = ts.touchX[0] - prev_state.touchX[0];
	yDiff = ts.touchY[0] - prev_state.touchY[0];


	if (prev_state.touchDetected != ts.touchDetected)
	{
 prev_state.touchDetected = ts.touchDetected;

		if ((ts.touchX[0] != 0) && (ts.touchY[0] != 0))
		{
		 prev_state.touchX[0] = ts.touchX[0];
		 prev_state.touchY[0] = ts.touchY[0];
		}
 }
	else if (yDiff > 5 || yDiff < 5)
	{
		if (ts.touchX[0] > slidestr1.cursor_start_x && ts.touchX[0] < slidestr1.cursor_end_x &&
 	ts.touchY[0] > slidestr1.cursor_start_y && ts.touchY[0] < slidestr1.cursor_end_y)
 {
			if (yDiff < 100 && yDiff > -100 && yDiff != 0)
			{
 	 BSP_LCD_CreateSlideBar(&slidestr1, (uint8_t *)(&slide1), (uint8_t *)(&cursor1), yDiff, 0);

 	 LCD_LOG_State("Cursor 1 now at position %d%%", slidestr1.curr_pos);
 	}
 }
		if (ts.touchX[0] > slidestr2.cursor_start_x && ts.touchX[0] < slidestr2.cursor_end_x &&
 	ts.touchY[0] > slidestr2.cursor_start_y && ts.touchY[0] < slidestr2.cursor_end_y)
 {
			if (yDiff < 100 && yDiff > -100 && yDiff != 0)
			{
 	 BSP_LCD_CreateSlideBar(&slidestr2, (uint8_t *)(&slide1), (uint8_t *)(&cursor1), yDiff, 0);

 	 LCD_LOG_State("Cursor 2 now at position %d%%", slidestr2.curr_pos);
 	}
 }
		if ((ts.touchX[0] != 0) && (ts.touchY[0] != 0))
		{
			prev_state.touchX[0] = ts.touchX[0];
			prev_state.touchY[0] = ts.touchY[0];
		}
		//TS_State.Layer = 0;
		//TS_State.x = prev_state.touchX[0];
		//TS_State.y = prev_state.touchY[0];
		//GUI_TOUCH_StoreStateEx(&TS_State);
	}
