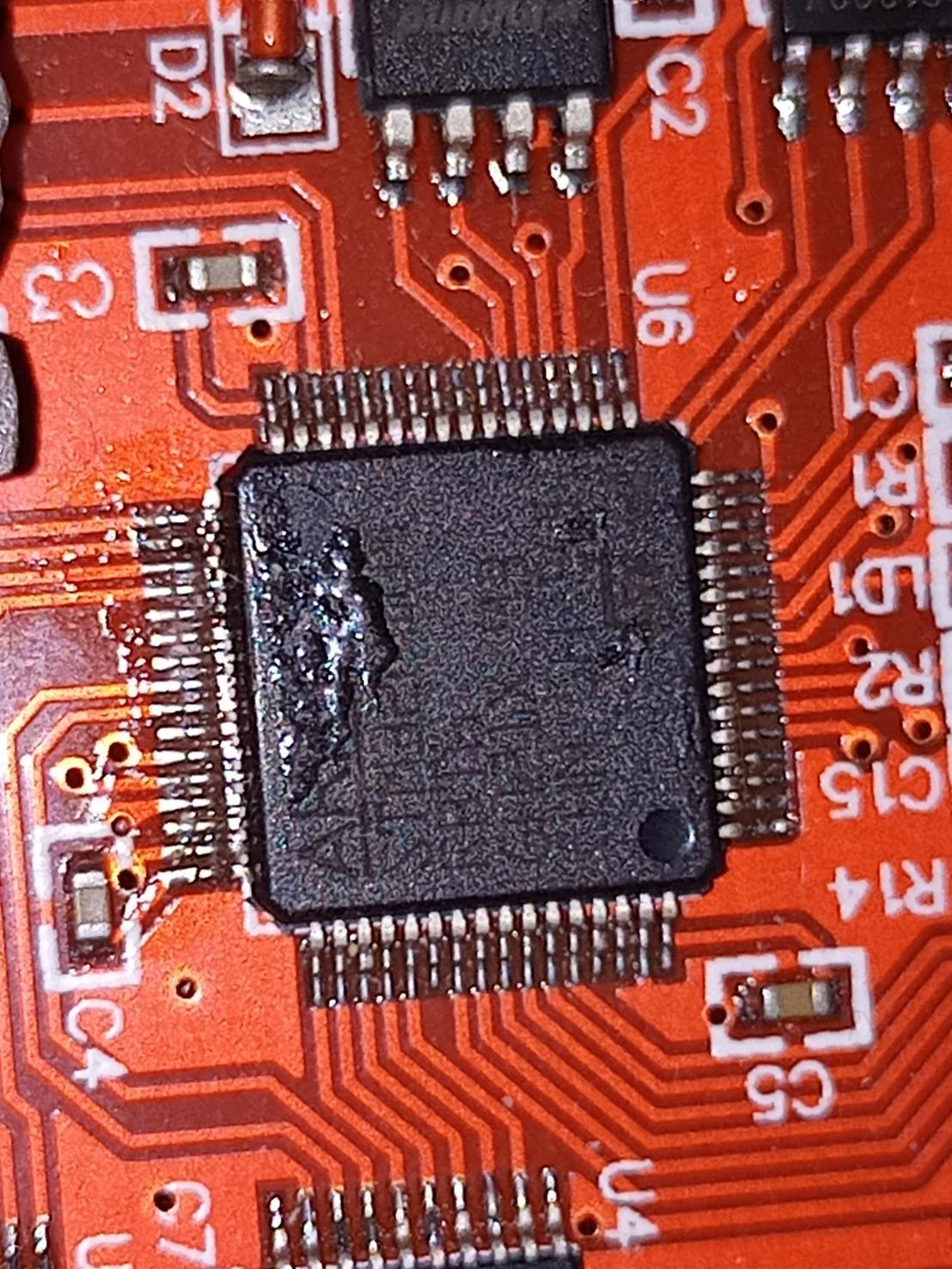

AR STM32 RBTH GH X CHN This is a dot-matrix subtitle machine with the writing on the surface of the microprocessor still visible after it has been painted over. Can you tell me what kind of microprocessor it might be? Thank you!

  • February 23, 2023
  • 3 replies
  • 1357 views

..

    This topic has been closed for replies.

    3 replies

    Tesla DeLorean
    Guru
    February 23, 2023

    Perhaps a large, high resolution, in-focus picture?

    How many pins?

    What STM32 family?

    ARM

    Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
    TLin.10
    TLin.10Author
    Associate
    February 24, 2023

    Actually, I don't konw its family. I can only count 64 pins in total.

    Thank you for your help!


    Tesla DeLorean
    Guru
    February 24, 2023

    Looks to be an

    ARM

    STM32F103RBT6​

    GH*1X 93​

    CHN GH ​***

    ​ST

    M​ight be an F105

    Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
    PatrickF
    Technical Moderator
    February 24, 2023

    Hi @TLin.10​ ,

    First row is 'ARM', the trademark for the Cortex-M core.

    The important matter is on second row, the 4 characters after the STM32, below the paint (could you scratch it a bit more?).

    Btw, second line is likely not RBTH but RBT6, which correspond to LQFP64 package with 128kBytes of Flash.

    with RBT6, using MCU selector, I see it could be either STM32Fxxx, STM32Gxxx, STM32Lxxx, so wide choice.

    Good luck, as even with full processor reference, reverse engineering is always a complex task.

    You could also have a look to LQFP64 marking in TN1433: Reference device marking schematics for STM32 microcontrollers and microprocessors

    Regards.
